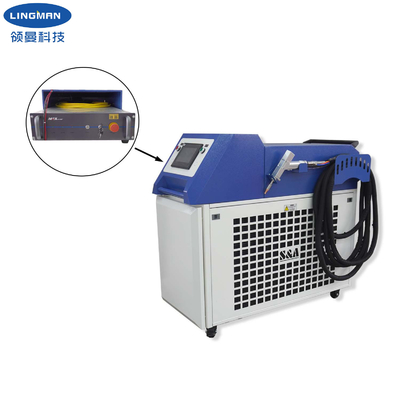

Fiber Laser Welding Machine Hand-held Welding For Metal Aluminum Iron
1. Description
Handheld Fiber Laser Welding Machine is a new type high-power, high-end continuous welding tool which adopts a high-quality fiber laser source to produce a fiber optic beam. After transmission processing, the light is focused on the workpiece to achieve continuous welding. It avoids the two thresholds of thermal strain and post-treatment, and is environmentally friendly and pollution-free, greatly improving the joint strength and quality of welding. Replacing the previously fixed light path with a hand-held type not only facilitates the welding of molds, advertising characters, kitchen utensils, doors and windows, etc., but also makes laser welding possible in outdoor operations, which indicates that the traditional welding of electric welding, argon arc welding, etc. will be replaced by laser welding.
Hand-held laser cleaning equipment is a new generation of technology products for surface cleaning. lt is easy to install and simple to operate. lt can be cleaned without chemical reagents, without media and without water. lt has the advantages of surface cleaning, high cleaning surface cleanliness, and the ability to remove objects. Surface resin, oil, stain, dirt, rust, coating, plating, paint, etc.
2. Performance Parameters
| Model | LM-2000HLW |
|
Laser power |
2000W |
| Laser output | Continous |
| Laser wavelength | 1080nm |
| Laser swing range | 0-6mm |
| Power requirements | 220V/380V |
| Total power | ≤9.5KW |
| Cooling system | Water chilling unit |
| Fiber length | 10m/15m |
| Working ambient temperature range | 15-35℃ |
| Working environment humidity range | <70% no condensation |
| Welding thickness range | ≤5mm |
| Applicable materials | Carbon steel, stainless steel, aluminum |
| Weld requirements | <1mm |
| Welding speed | 0-180mm/s |
3. Features
a. suitable for welding of various metal materials, carbon steel, stainless steel, high-strength steel, aluminum, copper and alloy materials.
b. it can continuously emit light, not only can realize thermal conduction welding, but also continuous deep penetration welding. lt can realize spot welding, butt welding, stitch welding, sealing welding, seam welding,etc.
c. using continuous fiber laser, maintenance-free, photoelectric conversion efficiency is about 30%, and the theoretical service life of the pump source is about 100, 000 hours.
d. processing speed is fast.
e. small thermal deformation and heat affected zone (suitable for processing high melting point, high hardnessspecial materials) .
f. combined with automation mechanisms such as robotic arms, the automation of processing can be realized.
4.Our service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
5.Production line
