OEM 4 Jaw Independent Lathe Chuck 200mm Central Height

OEM 4 Jaw Independent Lathe Chuck 200mm Central Height

MOQ: 1
Price: $2000-$7000
Standard Packaging: wooden box,packing measurements depend on products.
Delivery Period: 3-10 work days
Payment Method: T/T
Detail Information
Place of Origin
CHINA-CHANGZHOU
Brand Name
LINGMAN
Model Number
W220J
Claw Stroke:
70mm
Maximum Clamping Force:
4.4KN
Allowable Pressure:
0.3-1.0Mpa
Limit Speed:
500r/min
Clamping Range:
Φ10-Φ210mm
Central Height:
200mm
Rotational Inertia:
0.7Kg.㎡
Rotating Part Weight:
102kg
Whole Unit Weight:
140kg
Highlight:

OEM 4 jaw independent lathe chuck

,

ISO 4 jaw independent lathe chuck

,

210mm four jaw independent chuck

Product Description

PRODOCUT OVERWIEW:

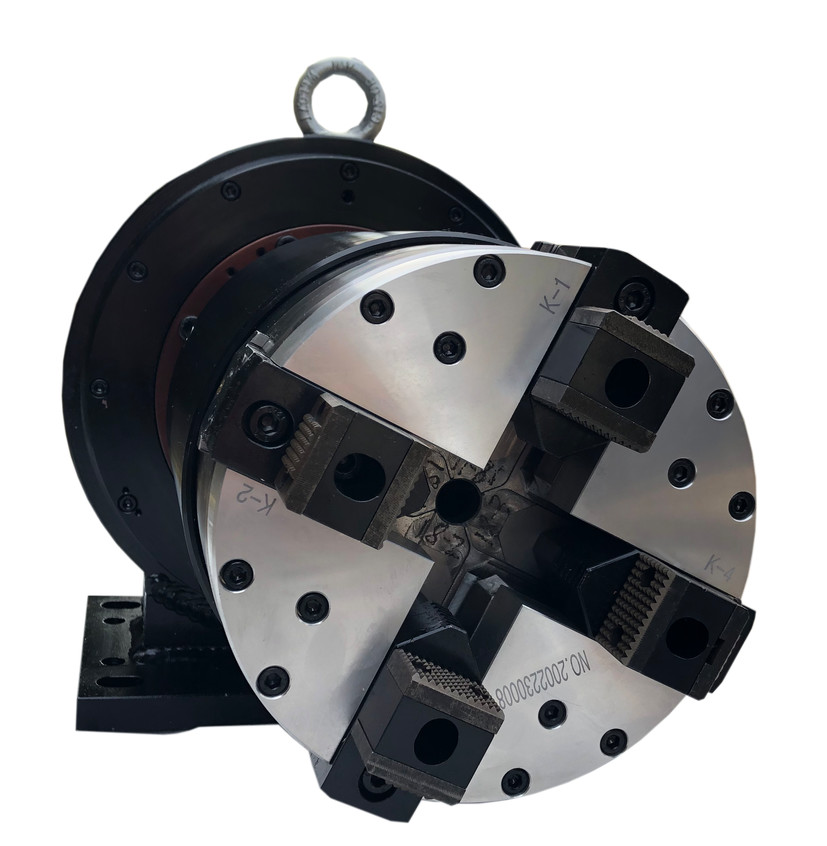

LATEST Design W220J Lever type medium-solid four-jaw double-acting feeding chuck



This product is specially designed for laser tube cutting equipment. The product itself can be used as an independent rotating spindle, and a chuck in it can firmly clamp workpiece and rotate simultaneously. The quick clamping and loosening actions can be realized by side rotation and air intake. The chuck can work in full stroke without additional adjustment of four claws. It can clamp all applicable pipe fittings and improve production efficiency. The product is widely used in special laser pipe cutters and other pipe processing machine systems.





Model Claw stroke/Diameter(mm) Maximum clamping force(KN) Allowable pressure(Mpa) Limit speed(r/min) Clamping range(mm) Central height(mm) Rotational inertia(kg.㎡) Rotating part weight(kg) Whole unit weight(kg)
W110J 20 3.2 0.3-1.0 500 Φ4-Φ100 110 0.3 19.8 30
W165J 33 4.3 0.3-1.0 500 Φ10-Φ165 175 0.3 69 95
W220J 70 4.4 0.3-1.0 500 Φ10-Φ210 200 0.7 102 140
W300J 86 9.8 0.3-1.0 500 Φ10-Φ314 250 2.2 145 175



SIMILIAR PRODUCT:

OEM 4 Jaw Independent Lathe Chuck 200mm Central Height 0OEM 4 Jaw Independent Lathe Chuck 200mm Central Height 1OEM 4 Jaw Independent Lathe Chuck 200mm Central Height 2OEM 4 Jaw Independent Lathe Chuck 200mm Central Height 3





WORK SHOP:

OEM 4 Jaw Independent Lathe Chuck 200mm Central Height 4OEM 4 Jaw Independent Lathe Chuck 200mm Central Height 5







FAQ:

Q:What's the OEM serivce of OREE LASER?

A1:1. Customized and OEM orders are welcome if you need;
2. All the OEM services are free, customer only need to provide us with your logo drawing,
function requirements, colors etc;
3. No MOQ required.

Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect
the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe
tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will
response within 24 hours as quick as we can to solve it for you.
Plenty of technical support online is available; free global regional training services.

Q: Are you factory or trading company?
A: We are an OEM factory with many experience, annual productivity can reach 5,000,000 sets.

Q: What's your MOQ?
A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.

Q: What's the QC system or OREE LASER?
A1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure;
2. Random sample testing by Quality Control;
3. Traceability for OREELASER machines;
4. Certified according to ISO 9001



WHY CHOOSE LINGMAN:

A: Professional Factory:

We have 20year special experience in manufacturing& exporting gears.Our imporoved and advanced enquipment and owned skilled
technician so ensure you best quality and definitely with our best factory competitive price.



B:Good material and Quality:



Since we are honest factory,we expect and look forward long cooperation,So material and quality we paid high attention. And for
quality we usually checkout during the production twice to control the quality,and we can also test on machine



C.Technicial support:



We can revise size as your request to meet your machine.



D.Best services:

We do best effort we can to our customers.
