Full Stroke Chuck Rotary Attachment , Pneumatic Rotary Chuck

MOQ:	1
Price:	＄2700-5000
Standard Packaging:	wooden box,packing measurements depend on products.
Delivery Period:	3-10 work days
Payment Method:	T/T

Details Information

Product Description

Detail Information

Place of Origin

CHINA-CHANGZHOU

Brand Name

LINGMAN

Model Number

G400JF

Claw Stroke:

154mm

Maximum Clamping Force:

1.2KN

Allowable Pressure:

0.4-0.9Mpa

Limit Speed:

500r/min

Clamping Range:

Φ16-Φ170mm

Central Height:

260mm

Rotational Inertia:

1.72Kg.㎡

Rotating Part Weight:

Whole Unit Weight:

144kg

Highlight:

170mm Chuck Rotary Attachment

0.9Mpa Chuck Rotary Attachment

Full Stroke Pneumatic Rotary Chuck

Product Description

PRODOCUT OVERWIEW:

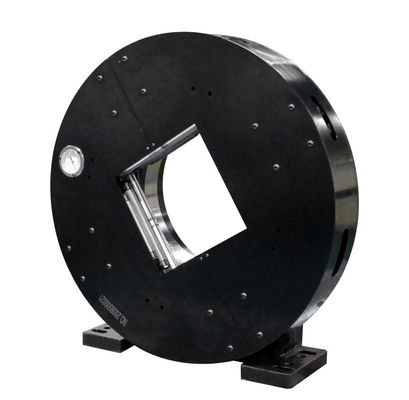

G400JF Pneumatic Type double-action full stroke laser chuck

This product is specially designed for laser tube cutting equipment. The product itself can be used as an independent rotating spindle, and a chuck in it can firmly clamp workpiece and rotate simultaneously. The quick clamping and loosening actions can be realized by side rotation and air intake. The chuck can work in full stroke without additional adjustment of four claws. It can clamp all applicable pipe fittings and improve production efficiency. The product is widely used in special laser pipe cutters and other pipe processing machine systems.

Full Stroke Chuck Rotary Attachment , Pneumatic Rotary Chuck 0

SIMILIAR PRODUCT:

Full Stroke Chuck Rotary Attachment , Pneumatic Rotary Chuck 1

WORK SHOP:

Full Stroke Chuck Rotary Attachment , Pneumatic Rotary Chuck 5

FAQ:

Q:What's the OEM serivce of OREE LASER?

A1:1. Customized and OEM orders are welcome if you need;

2. All the OEM services are free, customer only need to provide us with your logo drawing,

function requirements, colors etc;

3. No MOQ required.

Q: What's the package?

A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect

the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?

A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe

tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?

A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training

video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?

A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will

response within 24 hours as quick as we can to solve it for you.

Plenty of technical support online is available; free global regional training services.

Q: Are you factory or trading company?

A: We are an OEM factory with many experience, annual productivity can reach 5,000,000 sets.

Q: What's your MOQ?

A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.

Q: What's the QC system or OREE LASER?

A1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure;

2. Random sample testing by Quality Control;

3. Traceability for OREELASER machines;

4. Certified according to ISO 9001

WHY CHOOSE LINGMAN:

A: Professional Factory:

We have 20year special experience in manufacturing& exporting gears.Our imporoved and advanced enquipment and owned skilled
technician so ensure you best quality and definitely with our best factory competitive price.

B:Good material and Quality:

Since we are honest factory,we expect and look forward long cooperation,So material and quality we paid high attention. And for
quality we usually checkout during the production twice to control the quality,and we can also test on machine

C.Technicial support:

We can revise size as your request to meet your machine.

D.Best services:

We do best effort we can to our customers.
