Double Action Automatic Lathe Chuck , Pneumatic Chuck For CNC Lathe
Double Action Automatic Lathe Chuck , Pneumatic Chuck For CNC Lathe
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA-CHANGZHOU
Brand Name: LINGMAN
Model Number: CK130S-3
High Light:

CK130S-3 Automatic Lathe Chuck


Double Action Automatic Lathe Chuck


pneumatic chuck for CNC lathe

Payment & Shipping Terms
Packaging Details: wooden box,packing measurements depend on products.
Delivery Time: 3-10 work days
Payment Terms: T/T
Jaw Stroke: 3.6mm
Maximum Static Clamping Force: 25KN
Maximum Static Holding Force: 16KN
Permissilbe Pressure: ≤0.8Mpa
Clamping Range: 3-140mm
Holding Range: 15-140mm
Weight: 8.8kg
Product Description

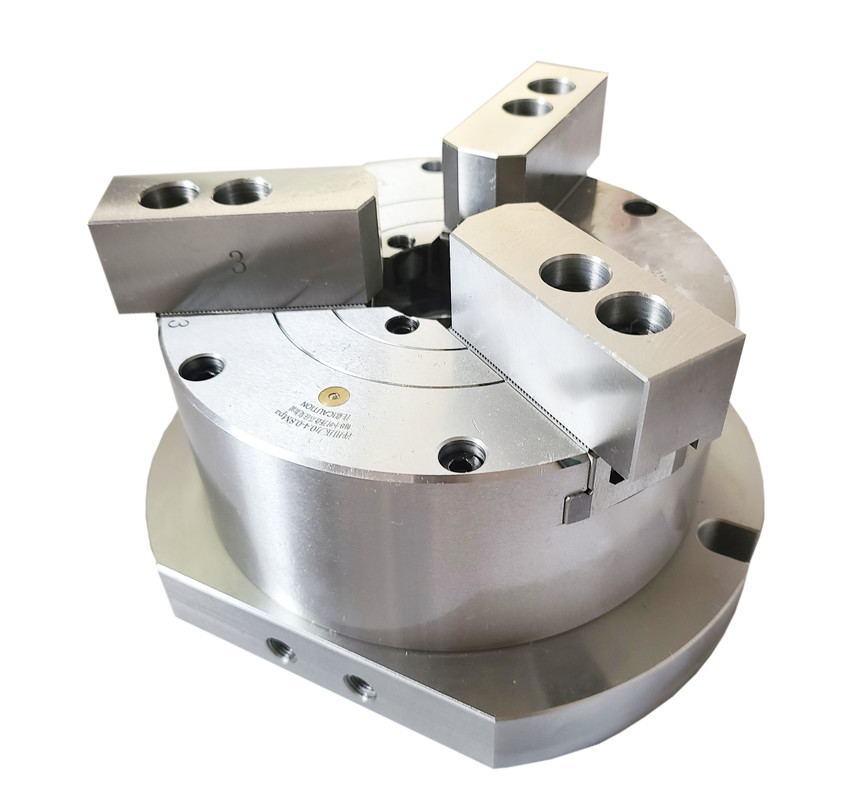

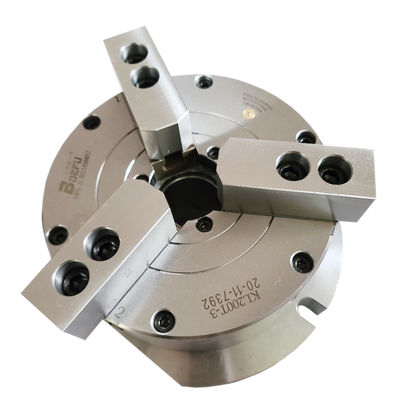

CK130S-3 Stainless steel Double-action Pnuematic chuck for CNC lathe machine

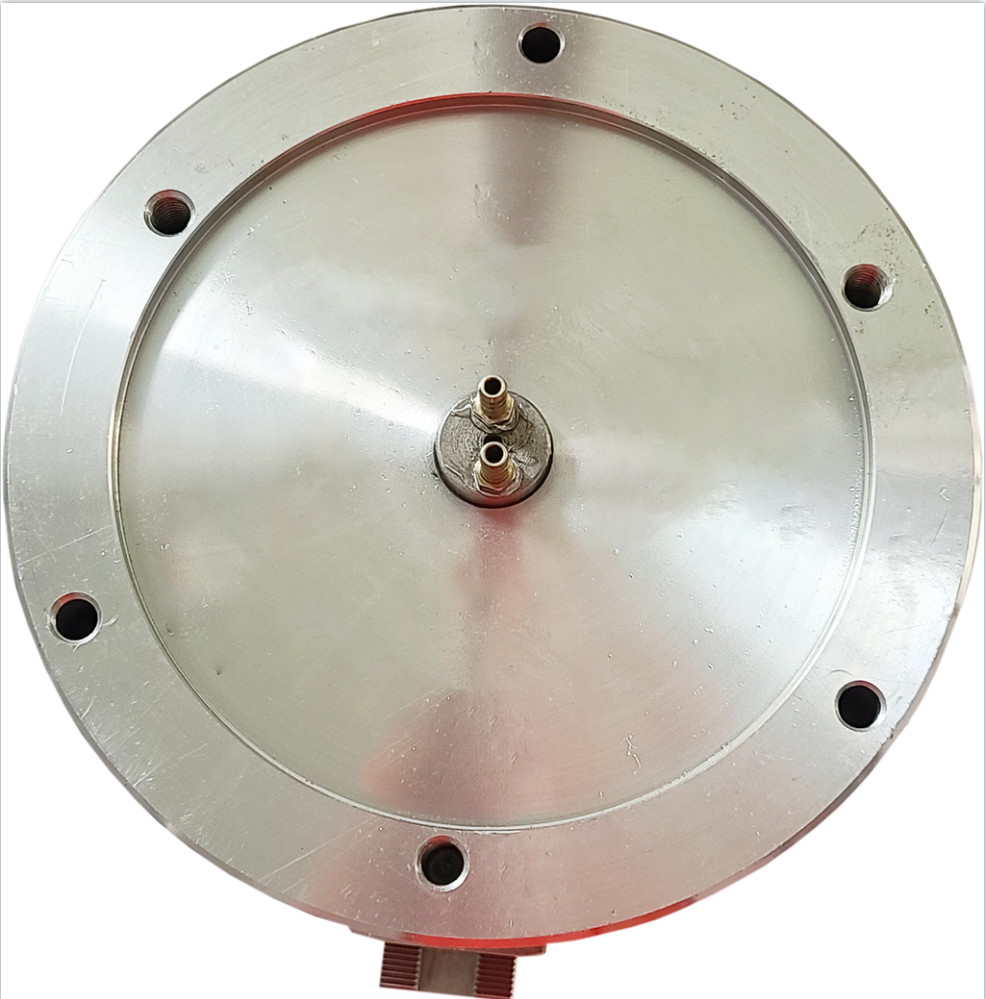

The connection between the chuck and the spindle conforms to the national standard, and the user has no need to change the structure of the machine , only the flange that matches the size of the whole chuck can be installed. The chuck body itself is an pneumatic cylinder with a built-in piston. The clamping and loosening actions are realized by the control mechanism of the tail of spindle . The middle of the chuck is a solid structure, which has a better clamping force. The product is proper for processing gears, discs, short shafts and other workpieces.


Spec Jaw stroke(mm) Maximum Static Clamping force(KN) Maximum Holding force(KN) Permissible Pressure(Mpa) Clamping range(mm) Holding range(mm) Weight(KG)
CK130S-3 3.6 25 16 0.4-0.8 3-140 15-140 8.8
CK160S-3 4.2 42.3 23.5 0.4-0.8 2-170 20-180 15.7
CK200S-3 5 62.5 35.6 0.4-0.8 5-210 20-240 24.9
CK250S-3 5.7 75 39.5 0.4-0.8 10-260 30-280 36.7
CK320S-3 8.5 128 73 0.4-0.8 10-350 40-360 68
CK400S-3 12 175 98 0.4-0.8 15-420 50-430 140




Double Action Automatic Lathe Chuck , Pneumatic Chuck For CNC Lathe 0Double Action Automatic Lathe Chuck , Pneumatic Chuck For CNC Lathe 1Double Action Automatic Lathe Chuck , Pneumatic Chuck For CNC Lathe 2Double Action Automatic Lathe Chuck , Pneumatic Chuck For CNC Lathe 3




Double Action Automatic Lathe Chuck , Pneumatic Chuck For CNC Lathe 4Double Action Automatic Lathe Chuck , Pneumatic Chuck For CNC Lathe 5





Q:What's the OEM serivce of OREE LASER?

A1:1. Customized and OEM orders are welcome if you need;
2. All the OEM services are free, customer only need to provide us with your logo drawing,
function requirements, colors etc;
3. No MOQ required.
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect
the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe
tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will
response within 24 hours as quick as we can to solve it for you.
Plenty of technical support online is available; free global regional training services.
Q: Are you factory or trading company?
A: We are an OEM factory with many experience, annual productivity can reach 5,000,000 sets.
Q: What's your MOQ?
A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.
Q: What's the QC system or OREE LASER?
A1. Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure;
2. Random sample testing by Quality Control;
3. Traceability for OREELASER machines;
4. Certified according to ISO 9001



A: Professional Factory:

We have 20year special experience in manufacturing& exporting gears.Our imporoved and advanced enquipment and owned skilled
technician so ensure you best quality and definitely with our best factory competitive price.


B:Good material and Quality:


Since we are honest factory,we expect and look forward long cooperation,So material and quality we paid high attention. And for
quality we usually checkout during the production twice to control the quality,and we can also test on machine


C.Technicial support:


We can revise size as your request to meet your machine.


D.Best services:

We do best effort we can to our customers.
