| MOQ: | 1 |
| Price: | ＄150-＄1700 |
| Standard Packaging: | wooden box,packing measurements depend on products. |
| Delivery Period: | 3-10 work days |
| Payment Method: | T/T |
PRODOCUT OVERWIEW:

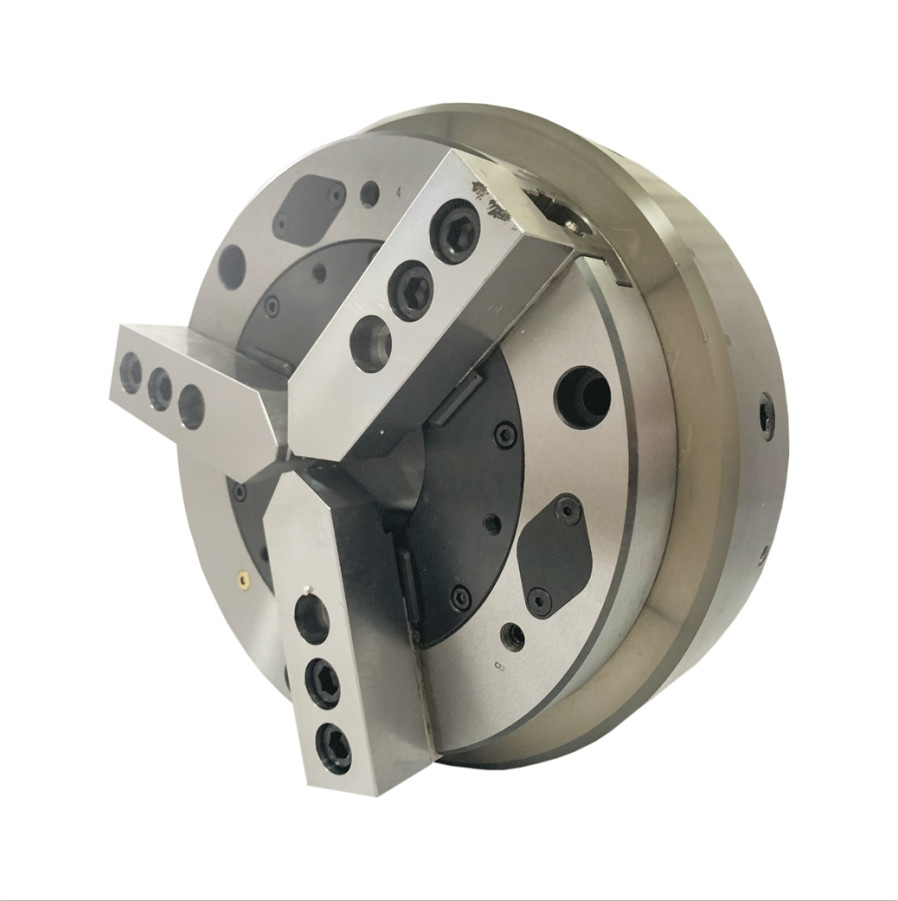

BK130TQ Stainless steel 3-Jaw Front mounted Pneumatic chuck for CNC machine
1. Patent product, vertical with base plate.
2. The chuck is a built-in cylinder and is easily installed, with no additional power source, and air enters from the side to achieve clamping and
releasing. Multiple chucks can be installed in a workspace at the same time to achieve multi-station machining, thus to improve the production efficiency.
3.The chuck is suitable for drilling and tapping machines, milling machines, vertical lathes and machining centers.
The whole installation process is quite easy.The chuck body is the cylinder,with piston and inverted valve inside to achieve super-long time pressure-keeping function (more than 24 hours).The clamping and loosing movement is achieved by rotary air inlet at the side.The machine will not work before cutting off the gas supply.
The chuck boasts advantages of less weight,big hole diameter,high stroke and high rotating speed,which is applicable for lathe,pipe thread machine tool and welding equipments.
| Specfications | Jaw stroke | Max.Gripping force | Allowable pressure | Limited rotating speed | Clamping range | Net weight |
| BK80TQ | 3.2 | 3.3 | 0.4-0.9 | 4200 | 1.5-80 | 4.2 |
| BK130TQ | 3.7 | 15 | 0.4-0.9 | 2850 | 2-130 | 11 |
| BK160TQ | 4.2 | 28 | 0.4-0.9 | 2300 | 2-170 | 17.5 |
| BK200TQ | 4.7 | 41.7 | 0.4-0.9 | 2000 | 5-210 | 25.5 |
| BK250TQ | 5.4 | 58.2 | 0.4-0.9 | 1600 | 10-260 | 36.5 |
| BK320TQ | 8.5 | 86.8 | 0.4-0.9 | 1200 | 60-350 | 63 |
SIMILIAR PRODUCT:
WORK SHOP:
FAQ:
Q:What's the OEM serivce of OREE LASER?
WHY CHOOSE LINGMAN:
A: Professional Factory:
We have 20year special experience in manufacturing& exporting gears.Our imporoved and advanced enquipment and owned skilled
technician so ensure you best quality and definitely with our best factory competitive price.
B:Good material and Quality:
Since we are honest factory,we expect and look forward long cooperation,So material and quality we paid high attention. And for
quality we usually checkout during the production twice to control the quality,and we can also test on machine
C.Technicial support:
We can revise size as your request to meet your machine.
D.Best services:
We do best effort we can to our customers.
|
|
