Square Middle Hole Pneumatic Power Chuck For Laser Steel Tube Cutting Machine

Square Middle Hole Pneumatic Power Chuck For Laser Steel Tube Cutting Machine
Square Middle Hole Pneumatic Power Chuck For Laser Steel Tube Cutting Machine Square Middle Hole Pneumatic Power Chuck For Laser Steel Tube Cutting Machine Square Middle Hole Pneumatic Power Chuck For Laser Steel Tube Cutting Machine Square Middle Hole Pneumatic Power Chuck For Laser Steel Tube Cutting Machine Square Middle Hole Pneumatic Power Chuck For Laser Steel Tube Cutting Machine Square Middle Hole Pneumatic Power Chuck For Laser Steel Tube Cutting Machine Square Middle Hole Pneumatic Power Chuck For Laser Steel Tube Cutting Machine Square Middle Hole Pneumatic Power Chuck For Laser Steel Tube Cutting Machine Square Middle Hole Pneumatic Power Chuck For Laser Steel Tube Cutting Machine Square Middle Hole Pneumatic Power Chuck For Laser Steel Tube Cutting Machine Square Middle Hole Pneumatic Power Chuck For Laser Steel Tube Cutting Machine Square Middle Hole Pneumatic Power Chuck For Laser Steel Tube Cutting Machine
Basic Information
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: G800JF-360
Minimum Order Quantity: 1 set
Price: USD 7500-10500 set
Packaging Details: Wood carton
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Claw Stroke: 180mm Maximum Clamping Force: 4.5KN
Allowable Pressure: 0.4-0.9MPa Limit Speed: 500r/min
Clamping Range: 5-360mm Central Height: 420mm
Rotational Inertia: 17.19kg.㎡ Rotating Part Weight: 303kg
Whole Unit Weight: 452kg
High Light:

4.5KN pneumatic power chuck

,

500rpm pneumatic power chuck

,

360mm pneumatic lathe chuck

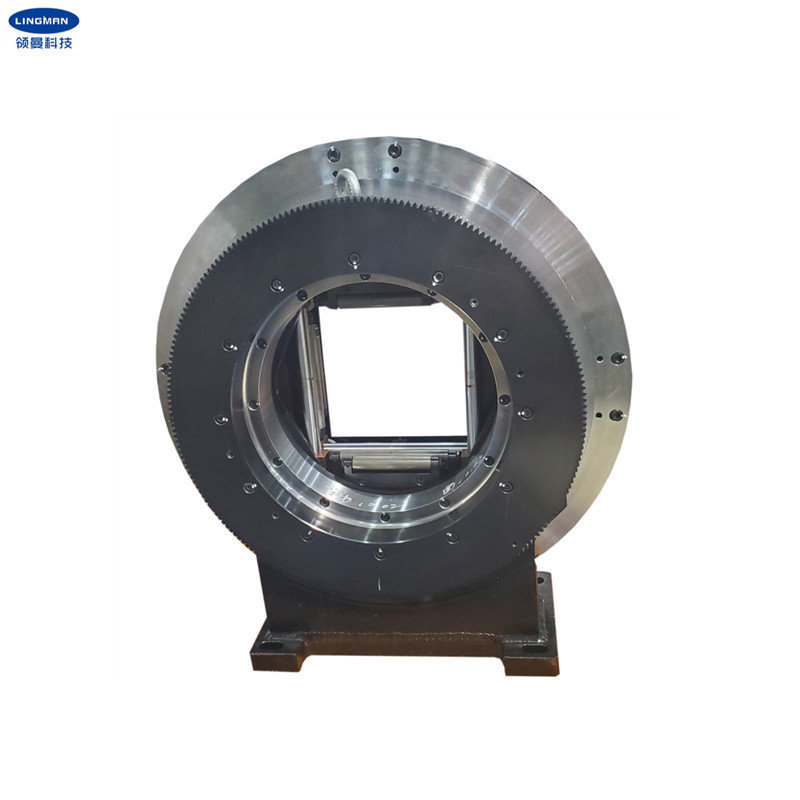

Square Middle Hole Pneumatic Power Chuck For Laser Steel Tube Cutting Machine



1. Description


The product is specially designed for laser tube cutting equipment. The production itself can be used as an independent rotating spindle, with a chuck that can firmly clamp the work-piece while rotating.



The product outputs by using a cylinder directly, the mechanical efficiency is high, the energy loss is small, the output clamping force is large, and the clamping force is stable. Because the cylinder is used to clamp the work-piece directly, the working range is wide. The cylinder is used for outputting directly, the output force and the air pressure are in linear proportion, which makes it easy to achieve software control.



This kind of chuck is made in a square middle hole. It increases the size of square tube and expands the scope of use. And the structure of this chuck is very simple and has fewer components, compared with other types of chucks. But it has stable performance and low energy consumption.



2. Performance Parameters



Model number

G800JF-360

Claw stroke

180mm

Maximunm clamping force

4.5KN

Allowable pressure

0.4-0.9MPa

Limit speed

500r/min

Clamping range

5-360mm

Central height

420mm

Rotational inertia

17.19g.m2

Rotating part weight

303kg

Whole unit weight

452kg



​3.Dimensions


Square Middle Hole Pneumatic Power Chuck For Laser Steel Tube Cutting Machine 0


Specifications A B B1 C D E F G H I J K L O R S
G800JF-360 680 420 820 840 205 150 620 257 510 523 539 25 360 9 16-M8 18



4.Advantages



 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e.1 Solid or hollow

  e.2 Comb-type or mortise-groove type claws



5.Production Line

Square Middle Hole Pneumatic Power Chuck For Laser Steel Tube Cutting Machine 1

6.Our Service



 a. We are the direct factory with good price and fast lead time.
 b. Professional design team work with you.
 c. Professional QC team to guarantee the high quality.
 d. Providing OEM & ODM service.
