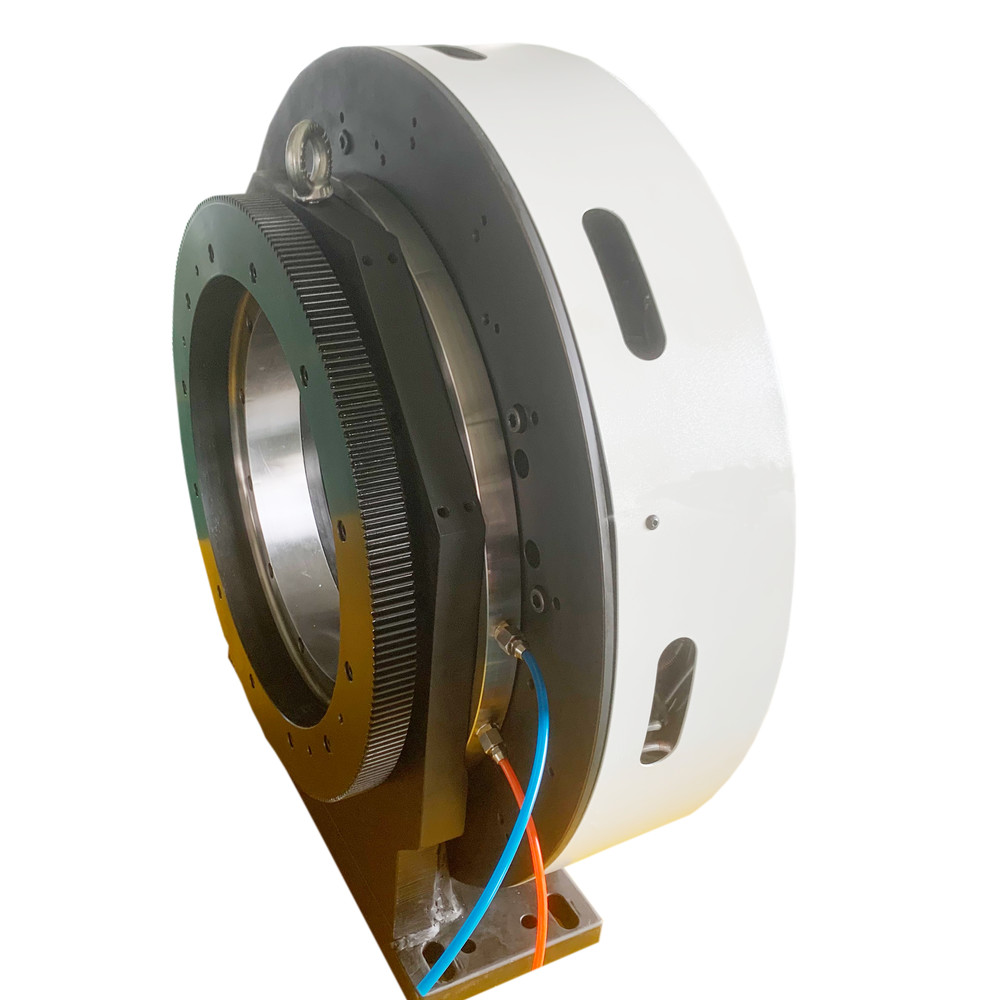

M230J Four-Jaw Simple Pneumatic Double-acting chuck for laser cutting machine
The product itself can be used as an independent rotating spindle, and a chuck in it can firmly clamp workpiece and rotate simultaneously. The quick clamping and loosening actions can be realized by side rotation and air intake. The chuck can work in full stroke without additional adjustment of four claws. It can clamp all applicable pipe fittings and improve production efficiency.
The connecting between the chuck and main shaft complies with the national standard(short cylinder connecting mode),so users only need to prepare right connection flange compatible with the machine tool and chuck instead of changing the machine tool structure during installation.
The whole installation process is quite easy.The chuck body is the cylinder,with piston and inverted valve inside to achieve super-long time pressure-keeping function (more than 24 hours).
The chuck boasts advantages of less weight,big hole diameter,high stroke and high rotating speed,which is applicable for lathe,pipe thread machine tool and welding equipments.
| Model | Central height | Maximum Clamping force | Jaw stroke | New weight | Rotational inertia |
| M230j | 350mm | 2KN. | 10mm-250mm | 200KG | 4Kg.㎡ |
Technical features:
1. Large through hole pneumatic pressure maintaining type four-claw double;
2. Adopt the advanced alloy steel material, all with the surface by surface
hardening treatment, in order to improve the accuracy and durability;
3. Matching surfaces of all parts hardened, ground and lubricated directly;
4. Can clamp the round tubes, square tubes, rectangular tubes, oval tubes and all kinds profiles with different shapes;
5. Suitable for clamping part of a workpiece inserted into the through hole, checking
the seating, or modifying spindle coolant specifications;
6. Low noise, large stroke.
