Place of Origin: | Changzhou, Jiangsu, China |
---|---|
Brand Name: | Lingman |
Model Number: | G360B-110 |
Minimum Order Quantity: | 1 set |
Price: | USD 3400-3800/set |
Packaging Details: | Wood carton |
Delivery Time: | 15-20 work days |
Payment Terms: | T/T, L/C |
Supply Ability: | 100 sets per month |
Product Name: | Main Chuck | Claw Stroke: | 50mm |
---|---|---|---|
Maximum Clamping Force: | 0.8KN | Allowable Pressure: | 0.4-0.9MPa |
Limit Speed: | 400r/min | Clamping Range: | 5-110mm |
Central Height: | 225mm | Rotational Inertia: | 2.19kg.㎡ |
Rotating Part Weight: | 107kg | Application: | Laser Cutting |
High Light: | Light Weight Main Chuck,Low Noise Main Chuck,400rpm 4 jaw chuck |
1. Descripition

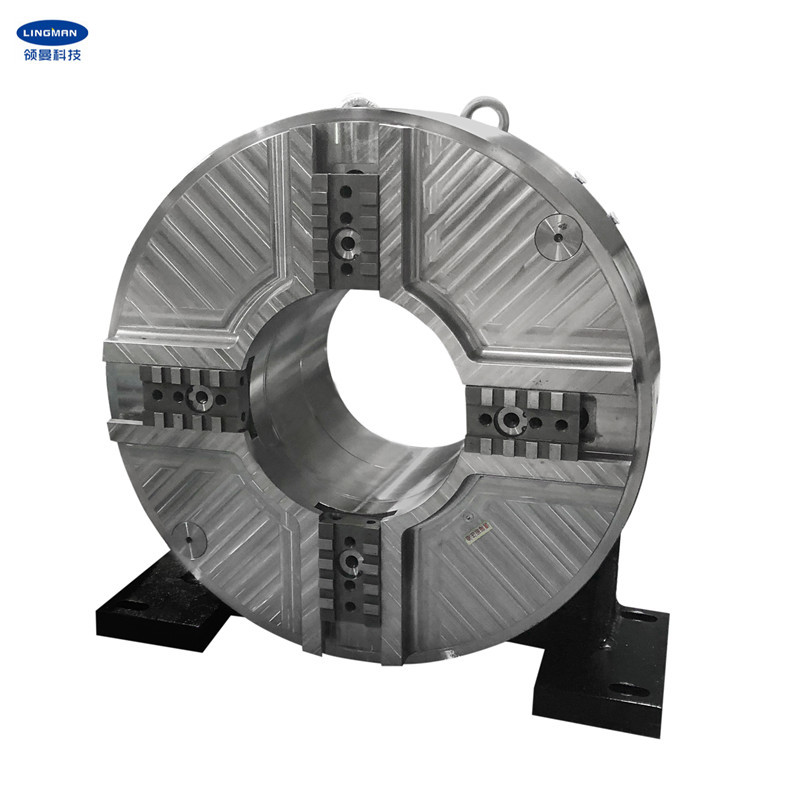

Our chuck is specially designed for laser pipe cutting machine. The product itself can be used as an independent spindle with a chuck in the middle which can firmly clamp the work-piece and rotate at the same time.
There’s two independent cylinders, one-way valve and check valve and it also has long-term pressure holding function( over 8 hours) inside. The quick clamping and loosening actions can be achieved through the side rotation of air inlet, and disconnect the air source to start the work.
Because of the long length of the parts processed by the cutter, the main chuck used as the head position of laser cutting and the tail chuck matched with it are usually installed in pairs on the equipment. The product is stable in structure and can withstand large radial force, axial force and overturning force. It has smooth rotation, high accuracy and low noise.
2. Performance Parameters
|
G360B-110 |
|
50mm |
|
0.8KN |
|
0.4-0.9MPa |
|
400r/min |
|
5-110mm |
|
225mm |
|
2.19Kg.m2 |
|
107kg |
|
149kg |
3. Dimensions
Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S |
G360B-110 | 420 | 225 | 405 | 427 | 230 | 186 | 365 | 211 | 110 | 122 | 140 | 360 | 30 | 60 | 8 | 6 | 22 | M12 | 12-M8 | 18 |
4. Advantages
a. Full stroke design |
b. Wide range of applications, diversification of processing profiles |
c. High repetitive positioning accuracy |
d. Low maintenance cost, long service life |
e. Multiple configurations are available e.2 Comb-type or mortise-groove type claws |
5. Production Line
6.Our Service
a. We are the direct factory with good price and fast lead time. |
b. Professional design team work with you. |
c. Professional QC team to guarantee the high quality. |
d. Providing OEM & ODM service. |
