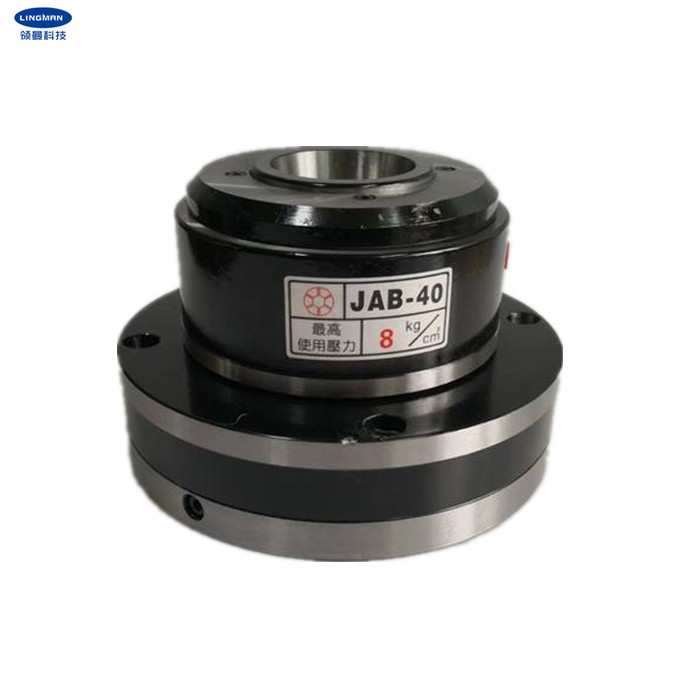

Rotary Pneumatic Clamp Collet Auto CNC Lathe Chuck

Category:
Laser Rotary Attachment
Price:
USD 480-950/set
Payment Method:
T/T, L/C
Specifications
Product Name:
Pneumatic Chuck
Raw Material:
Steel
Push Side:
128.4cm2
Pull Side:
119.7cm2
Step Hole:
30mm
Through Hole:
25mm
Max. Clamping Force:
7.8/7.2
Connecting Bolt:
4-M8
Adapter Collet:
YB-25
Collet Fixing Screw:
2-M5
Weight:
9.5kg
Application:
CNC Lathe
Highlight:

Auto CNC Lathe Chuck

,

Rotary CNC Lathe Chuck

,

JAB-25 Automatic Lathe Chuck

Introduction
Rotary Pneumatic Clamp Collet High Speed Chuck for Auto CNC lathe and Slant Bed

1. Description



Our company mainly manufacture different kinds of chucks which are applied in laser cutting machines, CNC lathes, auto lathes and so on. This kind of chuck can be used for internal expansion and external clamping. The structure of it is integrated heat-treated steel. The bearing has no load and chuck has good ability at high speed and has long service life. It is still in low temperature when rotating. It is two-way power to force to ope the collet. When the pressure is interrupted, the chuck will locks by itself and keeps itself in a clamping state.

It is easy and convenient to install it, just need to directly connect flange to the main shaft. It can be connected to the machine system through a three-point combination valve. The collet does not retract and can be controlled normally. The length of the body accuracy is within 0.01mm.

This chucks is applied to lathes, CNC lathes, grindling machines, indexing plates, turning of batch work-piece and so on. Except this kind of chuck, other types of chucks are also provided.



 2. Performance Parameters



  • Model number
JAB-25
  • Push side
128.4cm2
  • Pull side
119.7cm2
  • Working pressure
0.3-0.8MPa
  • Limit speed
4000r/min
  • Step hole
30mm
  • Through hole
25mm
  • Max. clamping force
7.8/7.2
  • Connecting bolt
4-M8
  • Adapter collet
YB-25
  • Collet fixing screw
2-M5



3. Dimensions


Rotary Pneumatic Clamp Collet Auto CNC Lathe Chuck


Specifications A B C D E F G H I L
JAB-25 167 130 25 104 52 48 5 8.5 147 108


 4. Advantages



 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e.1 Solid or hollow

  e.2 Comb-type or mortise-groove type claws



 5. Production Line

Rotary Pneumatic Clamp Collet Auto CNC Lathe Chuck

 6. Our Service



 a. We are the direct factory with good price and fast lead time.
 b. Professional design team work with you.
 c. Professional QC team to guarantee the high quality.
 d. Providing OEM & ODM service.
