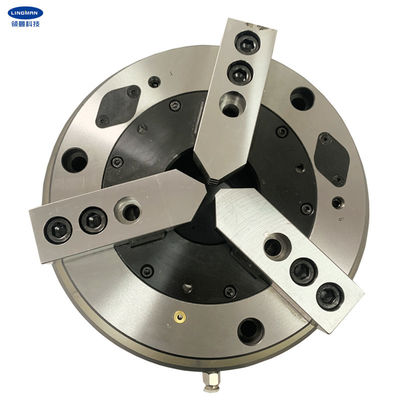

Stainless Steel Automatic Lathe Chuck , 3 Jaw Chuck Lathe Machine

Product Details

Place of Origin: CHINA-CHANGZHOU

Brand Name: LINGMAN

Model Number: KT08-3

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $150-$1700

Packaging Details: wooden box,packing measurements depend on products.

Delivery Time: 3-10 work days

Payment Terms: T/T

Get Best Price
Highlight:

16 stroke Automatic Lathe Chuck

,

210mm Automatic Lathe Chuck

,

ISO 3 jaw chuck lathe machine

Plunger Stokre:
16mm
Jaw Stroke:
7.4mm
Max. Clamping Range:
210mm
Min. Clamping Range:
13mm
Max. Clamping Force:
85.8KN
Weight:
22.5KG
Matching Cyl.:
TK852
Max. Pressure:
2.7Mpa
Plunger Stokre:
16mm
Jaw Stroke:
7.4mm
Max. Clamping Range:
210mm
Min. Clamping Range:
13mm
Max. Clamping Force:
85.8KN
Weight:
22.5KG
Matching Cyl.:
TK852
Max. Pressure:
2.7Mpa
Stainless Steel Automatic Lathe Chuck , 3 Jaw Chuck Lathe Machine

PRODOCUT OVERWIEW:





KT08-3 Stainless steel 3-Jaw chuck for SC CNC machine lathe Power chuck



Working principle: the clamping power source of the chuck is compressed air when compressed air flows into the one-way valve through a distributing ringand then into the chuck cylinder,thus to drive the piston,so that the jaw dips a workpiece tightly;then,the reversing valve is powered off,and the air pressure within the cylinder is sealed by the one-way valve.The sealing device of the distributing ring is released,not to contact the chuck body.And the equipment can be strarted for normal work at this time.



Spec. Plunger stroke Jaw stroke Max.Clamping range Min.Clamping range Weight Matching Cyl. Max.Pressure
KT04-3 10 5.4 110 7 4 TK428 2.3
KT05-3 10 5.4 135 12 6.7 TK536 2.9
KT06-3 12 5.5 168 15 11.9 TK646 2.8
KT08-3 16 7.4 210 13 22.5 TK852 2.8
KT10-3 19 8.8 254 31 34.5 TK1075 2.7
KT12-3 23 10.6 304 34 56.6 TK1291 2.7
KT15-3 23 10.6 381 50 120 TK1512 2.1
