Through Hole Chuck 3 Soft Jaw Wedge Shape Hydraulic Chuck

MOQ:	5 sets
Price:	USD 270-780 set
Standard Packaging:	Wood carton
Delivery Period:	7-15 work days
Payment Method:	T/T, L/C
Supply Capacity:	200 sets per month

Details Information

Product Description

Detail Information

Place of Origin

Changzhou, Jiangsu, China

Brand Name

Lingman

Model Number

3H-05

Product Name:

Three Jaw Hydraulic Chuck

Material:

Stainless Steel

Wedge Stroke:

Claw Stroke/diameter:

5.4mm

Clamping Diameter:

12-135mm

Max. D.B Pull:

17.1KN

Max. Clamping Force:

35.8KN

Max. Numbers Of Revolutions:

7000 R.p.m

Weight:

7.5KG

Highlight:

Hydraulic Through Hole Chuck

Wedge Shaped Through Hole Chuck

7000 Rpm Hydraulic Chuck

Product Description

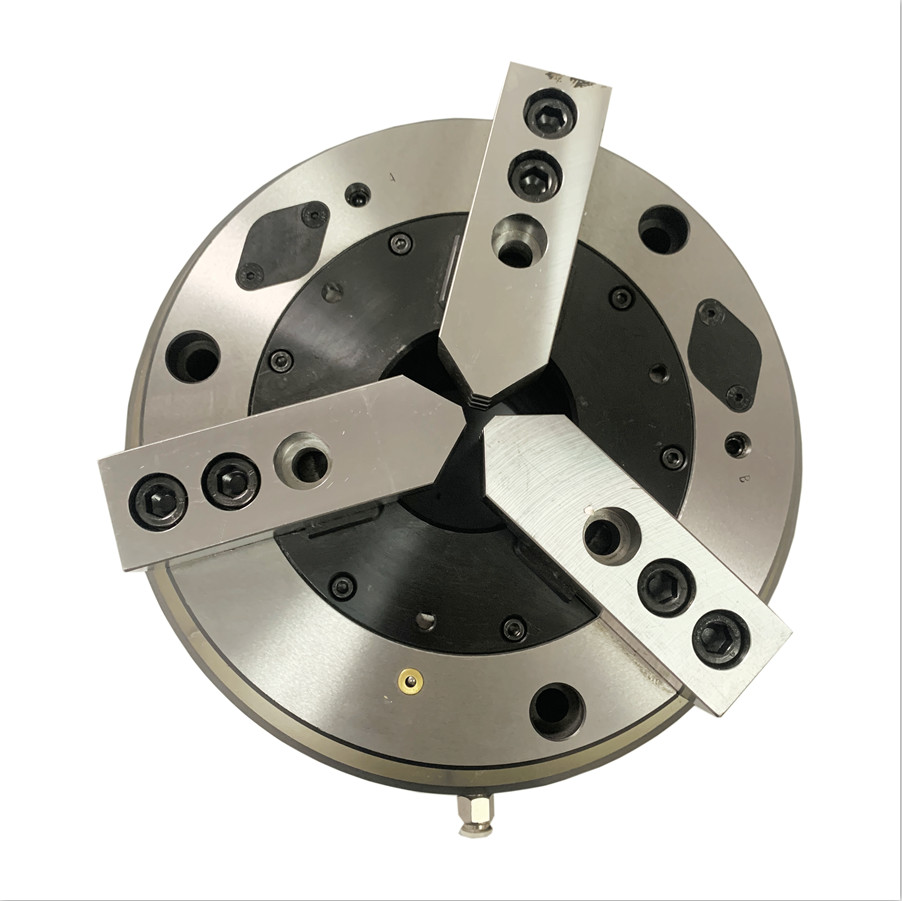

Through Hole Chuck 3 Soft Jaw Wedge Shape Hydraulic Chuck

1. Description

Our chuck is in a large through hole structure and it has 3 jaws in wedge shape which are especially suitable for clamping special-shaped objects. All sliding surfaces are processed through hardened treatment, precision grinding and directly lubricated. In additional, it has high rigidity and high clamping accuracy.

2. Performance Parameters

Model number	3H-05
Wedge stroke	10mm
Claw stroke/diameter	5.4mm
Clamping diameter	12-135mm
Max. D.B pull	17.1KN
Max. clamping force	35.8KN
Weight	7.5KG
Max.working pressure	2.9Mpa
Max. number revolutions	7000 r.p.m
Applicable rotary cylinder	TH-536

3. Dimensions

Specifications	A	B	C	D	D1	D2	E	E1	F	G MAX	G MIN	H	J
3H-05	135	71	110	82.6	63.51	96	4	15	33	16	6	20	12

4. Advantages

a. Full stroke design

b. Wide range of applications, diversification of processing profiles

c. High repetitive positioning accuracy

d. Low maintenance cost, long service life

e. Multiple configurations are available
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws
