Product Details
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: 3L-05/06/08/10/12
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 300-780 set
Packaging Details: Wood carton
Delivery Time: 7-15 work days
Payment Terms: T/T, L/C
Supply Ability: 200 sets per month
Model: |
3L-08 |
Wedge Stroke: |
20mm |
Claw Stroke/diameter: |
32mm |
Clamping Diameter: |
25-215mm |
Max. Clamping Force: |
35.0KN |
Weight: |
23KG |
Max. Number Revolutions: |
3000 R.p.m |
Applicable Cylinder: |
TH-852 |
Structure: |
3 Jaw Power Chuck |
Application: |
Hydraulic Power Chuck |
Model: |
3L-08 |
Wedge Stroke: |
20mm |
Claw Stroke/diameter: |
32mm |
Clamping Diameter: |
25-215mm |
Max. Clamping Force: |
35.0KN |
Weight: |
23KG |
Max. Number Revolutions: |
3000 R.p.m |
Applicable Cylinder: |
TH-852 |
Structure: |
3 Jaw Power Chuck |
Application: |
Hydraulic Power Chuck |
1. Description

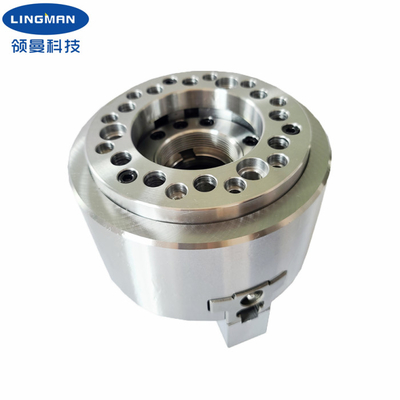

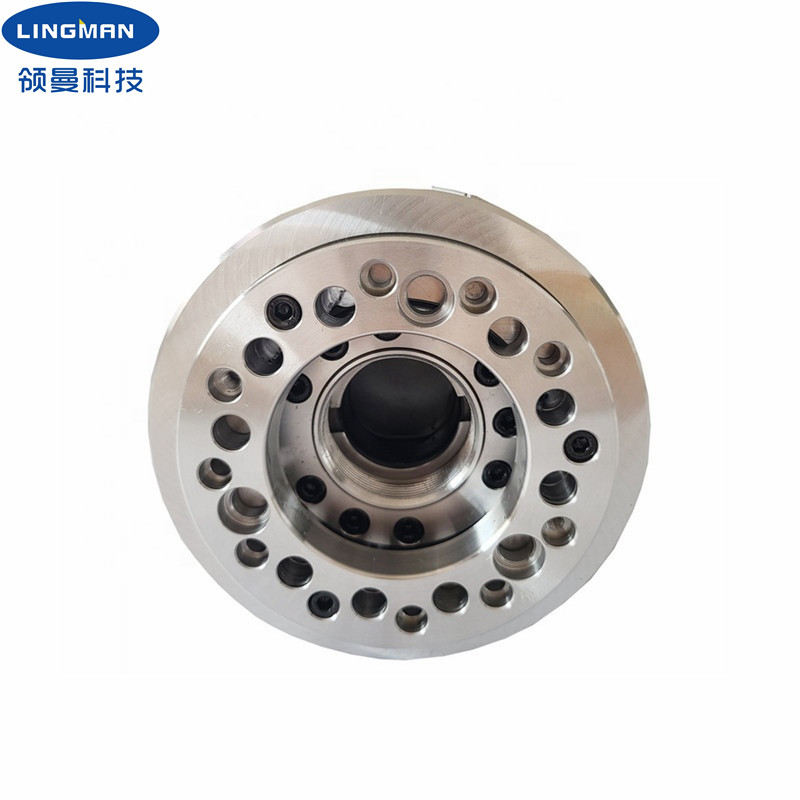

We are a manufacturer of CNC lathes and chucks for laser cutting machines with 15 years of professional experience. Hydraulic chucks are now very popular with customers in the market. The structure of the super long power chuck is a hollow structure with large holes. This chuck is very suitable for clamping irregular workpieces. All sliding surfaces of our chucks are hardened, precision ground and directly lubricated to prevent failure. In addition, it has high rigidity and high clamping accuracy. Super long claw stroke power chuck can better meet customers' requirements for pipe fittings of different shapes and sizes.
Collets are available in a variety of sizes. In addition to standard size chuck, can also be customized according to your drawings and requirements.
2. Performance Parameters
|
Model number |
3L-08 |
|
Wedge stroke |
20mm |
|
Claw stroke/diameter |
32mm |
|
Clamping diameter |
25-215mm |
|
Max. D.B pull |
34.3KN |
|
Max. clamping force |
35.0KN |
|
Weight |
23KG |
|
Max.working pressure |
2.8Mpa |
|
Max. number of revolutions |
3000 r.p.m |
|
Applicable rotary cylinder |
TH-852 |
3. Dimensions
| Specifications | A | B | C | D | D1 | D2 | E | E1 | F | G max. | G min. | H | J |
| 3L-08 | 215 | 96 | 170 | 133.4 | 82.56 | 104.8 | 5 | 23 | 52 | 7 | -13 | 20 | 30 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available e.2 Comb-type or mortise-groove type claws |
5. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| s. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
