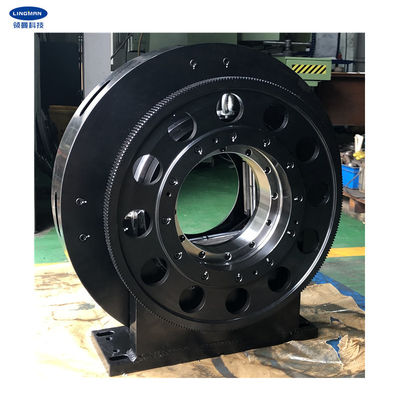

CNC Lathe Chuck Laser Pneumatic Chuck For Fiber Laser Tube Cutting Machine, Plasma Cutting Machine
  • name
  • name
  • name

CNC Lathe Chuck Laser Pneumatic Chuck For Fiber Laser Tube Cutting Machine, Plasma Cutting Machine

MOQ: 1 set
Price: USD 3600-3900/set
Standard Packaging: Wood carton
Delivery Period: 15-20 work days
Payment Method: T/T, L/C
Supply Capacity: 500 sets per month
Details Information
Product Description
Detail Information
Place of Origin
Changzhou, Jiangsu, China
Brand Name
Lingman
Model Number
G800J-355
Product Name:
Laser Pneumatic Chuck
Claw Stroke:
180mm
Allowable Pressure:
0.25-0.9MPa
Limit Speed:
150r/min
Maximum Clamping Force:
4.5KN
Central Height:
420mm
Rotational Inertia:
18.2kg.㎡
Clamping Range:
20-350mm
Product Description
CNC Lathe Chuck Laser Pneumatic Chuck For Laser Tube Cutting Machine, Plasma Cutting Machine
 1. Descripition

This product is specially designed for laser pipe cutting machine. The chuck itself can be used as an independent rotating spindle, with a chuck in the middle that can clamp a workpiece tightly and rotate at the same time, fast clamping and loosening actions can be achieved through the side rotating air intake, and the air source can be disconnected for work.

 This laser chuck has a simple structure, few components, light weight, low failure rate, stable performance, small moment of inertia and low energy consumption. The axial dimension of the chuck is small, and the cost for realizing the zero tailings si lower. At the same time, it also saves the cost of production.
The axial dimension of the chuck is small, and the cost for realizing the zero tailing is lower.

 2. Performance Parameters
  • Model number
 G800J-355
  • Claw stroke
 180mm
  • Maximunm clamping force
 4.5KN
  • Allowable pressure
 0.25-0.9MPa
  • Limit speed
 150r/min
  • Clamping range
 20-350mm
  • Central height
 420mm
  • Rotational inertia
 18.2Kg.m2
  • Rotating part weight
 210kg
  • Whole unit weight
 315kg


​ 3. Dimensions
 CNC Lathe Chuck Laser Pneumatic Chuck For Fiber Laser Tube Cutting Machine, Plasma Cutting Machine 0

Specifications A B B1 C D E F G H I R S
G600J-225 520 350 680 690 179 120 460 185 225 280 12-M8 18


 4. Advantages

 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e. 1 Solid or hollow
  e. 2 Comb-type or mortise-groove type claws



 5. Production Line
CNC Lathe Chuck Laser Pneumatic Chuck For Fiber Laser Tube Cutting Machine, Plasma Cutting Machine 1

 6. Our Service


 a. We are the direct factory with good price and fast lead time.
 b. Professional design team work with you.
 c. Professional QC team to guarantee the high quality.
 d. Providing OEM & ODM service.
