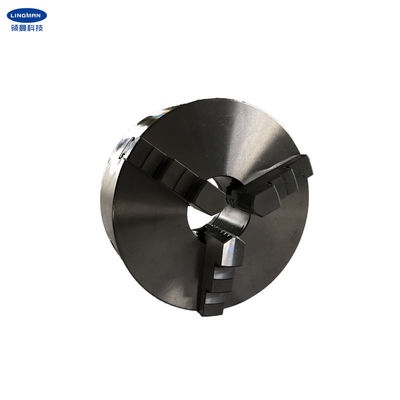

Self Centering 3 Jaw Lathe Chuck K11 80/100/125/160/200

Category:
CNC Lathe Chuck
Price:
USD 85-145 set
Payment Method:
T/T, L/C
Specifications
Product Name:
Self-centering 3 Jaw Chuck
Material:
Stainless Steel
Diameter:
72mm
Limit Speed:
2500r/min
Max. Torque:
250Nm
Weight:
26.8KG
Usage:
Clamp Work-piece
Power:
Manual
Application:
CNC Lathe Machine
Highlight:

Self Centering 3 Jaw Lathe Chuck

,

K11 3 Jaw Lathe Chuck

Introduction

Self-centering 3 Jaw Lathe Chuck K11 80/100/125/160/200

 1. Description


Three jaw self - centering chucks are mostly used in metal machine tools. Self centering clamp or clamp circular, triangular, hexagonal and other internal and external surface workpiece, used for various processing and clamping. The tightening force is adjustable and has high accuracy, which can meet the accuracy requirements of common machine tools.



The standard of three-jaw self-centering chuck is an important basis for product design, manufacture and acceptance, and also provides reference for upper computer.



Basic structure and working principle: the three-jaw self-centering chuck uses three screws to fix the chuck on the machine flange through the screw hole on the end face of the disk body. Insert the wrench into any square hole in the gear. When the wrench is turned, the pinion turns the coil. The thread at the end of the coil rotates so that the three grippers move forward at the same time or separate.


Features:
1. Short cylinder center installation.

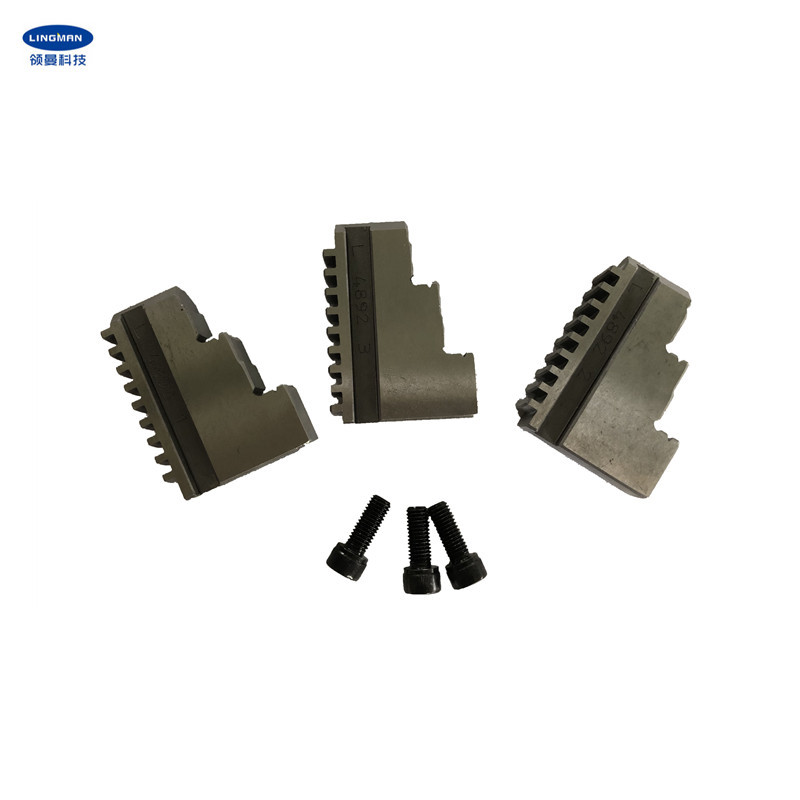

2. K11 type chuck is integrated with claws (including a set of inner claws and a set of outer claws).
3. The raw material of chuck is steel.
4. Also provide a variety of soft jaws.



If you need customzied chuck, we also can provide customized plan according to your need.



2. Dimensions
 Self Centering 3 Jaw Lathe Chuck K11 80/100/125/160/200



Self Centering 3 Jaw Lathe Chuck K11 80/100/125/160/200
 3. Advantages


 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e.1 Solid or hollow

  e.2 Comb-type or mortise-groove type claws



4. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
s. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.


5. Production Line
Self Centering 3 Jaw Lathe Chuck K11 80/100/125/160/200

6. FAQ

1. Can we visit your company to inspect products before delivery?
You are welcome to visit our company to inspect us and our products.

2. What's your lead time?
Within 15-35 days after confirming the order.

3.What can you buy from us?
Single bearing full stroke double-acting chuck, pneumatic connecting rod four-jaw double-action chuck, full-stroke double-action chuck, leveraged hollow(solid) four-jaw double-acting feeding chuck, double-acting chuck for professional pipe cutting machine, etc.

4. Why should you buy from us not from other suppliers?
①We are the direct factory with good price and fast lead time.
②Professional design team work with you.
③Professional QC team to guarantee the high quality.
④Providing OEM & ODM service.



5.What are your payment terms?

T/T, L/C, West Union, Paypal, etc.



Send RFQ
Stock:
MOQ:
5 sets
