1. Descripition

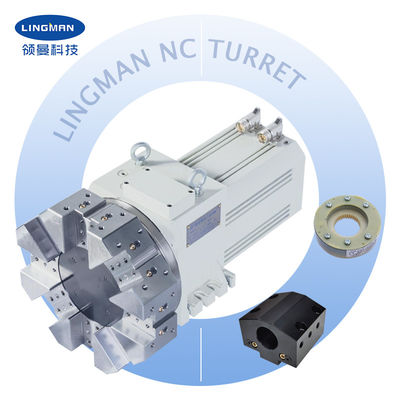

HAK37 series direct drive motor NC turret power to rotate with direct drive motor, it index and position with precise three piece face gear coupling, clamping/unclamping tool-holder disk with hydraulic force. It features high stiffness, instant reaction, high accuracy of clamping, smooth running from low speed to high speed, smart bi-directional indexing and positioning in the shortest path, multi tool stations, build-in cooling. It is the best choice for high-grade NC lathe.
2. Performance Parameters
TECHNICAL DATA | |||||
Turret model | HAK37063 | HAK37080 | HAK37100 | HAK37125 | |
Item | Unit | Numerical value | |||
Center height | mm | 63 | 80 | 100 | 125 |
Station number | N | 8/10/12 | 8/10/12 | 8/10/12 | 8/12 |
Load-bearing(including disc) | Kg | 40 | 60 | 120 | 180 |
Max.tangential torque | N.m | 750 | 1600 | 3500 | 4800 |
Maximum off load moment | N.m | 10 | 15 | 40 | 60 |
Time of changing adjoin tool | S | 0.22 | 0.25 | 0.31 | 0.35 |
Maximum tool position indexing time | S | 0.51 | 0.52 | 0.65 | 0.70 |
Dics relese/locking time | S | 0.15 | 0.20 | 0.20 | 0.25 |
Hydraulic pressure | Mpa | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 |
Repeatability accuracy | " | ±2 | ±2 | ±2 | ±2 |
Motor rated torque | N.m | 25 | 35 | 85 | 90 |
Motor rated speed | Rpm | 100 | 80 | 120 | 120 |
Motor rated voltage | V | 220 | 95 | 260 | 260 |
N.W.(without tool disk) | kg | 40 | 58 | 110 | 148 |
Turret specifications and accessories | |||||
8T Dics size | mm | 230/260 | 270/320 | 300/330 | 420 |
10T Dice size | mm | 270 | 290 | 380 | |
12T Dice size | mm | 285 | 320/340 | 410 | 440 |
O.D. tool | mm | 20 | 25 | 25 | 32 |
Facing tool | mm | 20 | 25 | 25 | 32 |
Boring tool | mm | 25 | 40 | 40 | 50 |
3. Dimensions
5. Production Line
6. Our Service
1.We are the direct factory with good price and fast lead time.
2.Professional design team work with you.
3.Professional QC team to guarantee the high quality.
4.Providing OEM & ODM service.
7. FAQ
Q: What parameters should we offer us for proper quotation?
A: Application, dimension, quantity, packing requirements.
Q:What's your advantages?
A:Honest business with competitive price and professional service on export process.
Q: Can we visit your company to inspect products before delivery?
A: You are welcome to visit our company to inspect us and our products.
Q:What's your lead time?
A: Within 15-35 days after confirming the order.
Q: What are your payment terms?
A: T/T, L/C, West Union, Paypal, etc.
