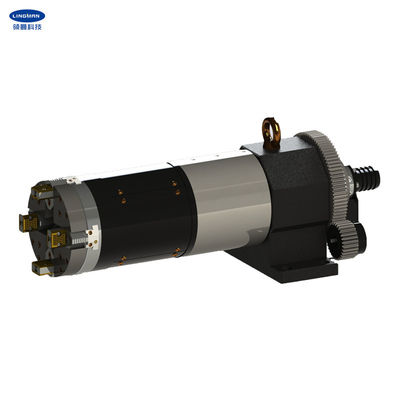

Four Jaw CNC Rotary Chuck Pneumatic Feeding Chuck

1 set
MOQ
USD 2600-2900 set
Price
Four Jaw CNC Rotary Chuck Pneumatic Feeding Chuck
Features Gallery Product Description Request A Quote
Features
Specifications
Claw Stroke: 70mm
Maximum Clamping Force: 2.4KN
Allowable Pressure: 0.3-1MPa
Limit Speed: 400r/min
Clamping Range: 10-225mm
Central Height: 145mm
Rotational Inertia: 0.23kg.㎡
Rotating Part Weight: 43kg
Whole Unit Weight: 81kg
Highlight:

400rpm CNC Rotary Chuck

,

1MPa CNC Rotary Chuck

,

225mm Pneumatic Feeding Chuck

Basic Infomation
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: G220T-40
Payment & Shipping Terms
Packaging Details: Wood carton
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Product Description
Four Jaw Fiber Rotary Chuck Pneumatic Feeding Chuck for CNC Lathe Laser Cutting Machine

 1. Description



We have more than 10 years' experience in focusing on R&D, production and sales of various pneumatic chucks, electric chucks and other power chucks.



The laser chuck is mainly designed for laser tube cutting equipment. It can be used as an independent rotating spindle with a chuck which can firmly clamp workpiece and rotate simultaneously. Rotary air intake is achieved through the rotator equipped at the end to achieve fast clamping and loosening actions. The air source supplies air continuously during work.



The design length of the clamping claw is short, and the phenomenon that slippery is caused and the clamping is unstable because of a long clamping claw horn does not appear at the condition of the maximum clamping force; the chuck has a simple structure, light weight, small moment of inertia and low energy consumption.



About the structure, the center of the chuck is a through structure. In order to make the environment clean and hygienic, the product of this series can be equipped with a dust extraction device on the back.



 2. Performance Parameters



  • Model number:
W220T-40
  • Claw stroke:
70mm
  • Maximunm clamping force:

2.4KN

  • Allowable pressure:
0.3-1MPa
  • Limit speed:
400r/min
  • Clamping range:
10-225mm
  • Central height:
145mm
  • Rotational inertia:
0.23g.m2
  • Rotating part weight:
43kg
  • Whole unit weight:
81kg



​ 3. Dimensions


Four Jaw CNC Rotary Chuck Pneumatic Feeding Chuck 0


Specifications A B B1 C D E F H M N P Q S T G
W220T-40 280 145 224 308 120 70 250 40 36 3 25 M8 18 424 669




 4. Advantages

   1. Full stroke design

   2. Wide range of applications, diversification of processing profiles

   3. High repetitive positioning accuracy
   4. Low maintenance cost, long service life
   5. Multiple configurations are available
     5.1 Solid or hollow

     5.2 Comb-type or mortise-groove type claws



 5. Production Line

Four Jaw CNC Rotary Chuck Pneumatic Feeding Chuck 1

 6. Our Service

   1. We are the direct factory with good price and fast lead time.
   2. Professional design team work with you.

   3. Professional QC team to guarantee the high quality.

   4. Providing OEM & ODM service.
