Rear Rotary Pneumatic 4 Jaw Self Centering Lathe Chuck

Category:
Laser Rotary Chuck
Price:
USD 2400-2800 set
Payment Method:
T/T, L/C
Specifications
Claw Stroke:
57mm
Maximum Clamping Force:
1.6KN
Allowable Pressure:
0.3-1MPa
Limit Speed:
400r/min
Clamping Range:
10-165mm
Central Height:
120mm
Rotational Inertia:
0.08kg.㎡
Rotating Part Weight:
24kg
Whole Unit Weight:
43kg
Highlight:

Rotary 4 jaw self centering lathe chuck

,

OEM 4 jaw self centering lathe chuck

,

400rpm CNC Lathe Chuck

Introduction
Rear Rotary Chuck Pneumatic Self-centering Power Chuck with Four Jaw for CNC Lathe Chuck

 1. Description

Our company is a professional supplier focusing on R&D, production and sales of various pneumatic chucks, electric chucks and other power chucks for more than 10 years.



This hollow double-acting feeding chuck is mainly made for laser fiber cutting machine. The center of the chuck is a through hole structure. And we have a new design in this chuck. The dust extraction device can be installed on the back to make the environment clean.



We are specializes in producing laser chuck. This chuck is specially designed for laser tube cutting equipment. It can be used as an independent rotating spindle with a chuck which can firmly clamp workpiece and rotate simultaneously. Rotary air intake is achieved through the rotator equipped at the end to achieve fast clamping and loosening actions. The air source supplies air continuously during work.





 2. Performance Parameters



  • Model number
W160T-23
  • Claw stroke
57mm
  • Maximunm clamping force
1.6KN
  • Allowable pressure
0.3-1MPa
  • Limit speed
400r/min
  • Clamping range
10-165mm
  • Central height
120mm
  • Rotational inertia
0.08g.m2
  • Rotating part weight
24kg
  • Whole unit weight
43kg

Dimensions

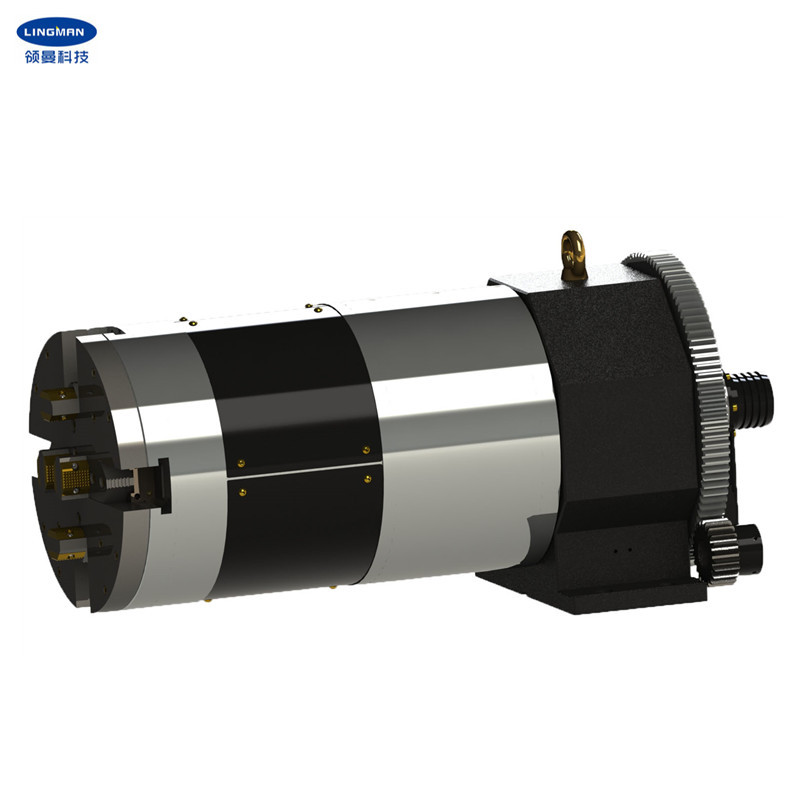

Rear Rotary Pneumatic 4 Jaw Self Centering Lathe Chuck


Specifications A B B1 C D E F H M N P Q S T G
W160T-23 200 120 164 258 106 70 185 23 30 3 12.5 M6 18 397 628




 4. Advantages

 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e.1 Solid or hollow

  e.2 Comb-type or mortise-groove type claws





 5. Production Line

Rear Rotary Pneumatic 4 Jaw Self Centering Lathe Chuck

 6. Our Service

  1. We are the direct factory with good price and fast lead time.
  2. Professional design team work with you.

  3. Professional QC team to guarantee the high quality.

  4. Providing OEM & ODM service.
