Pneumatic Laser Rotary Chuck , Double Action 4 Jaw True Chuck

Place of Origin Changzhou, Jiangsu, China
Brand Name Lingman
Model Number G160T-23
Minimum Order Quantity 1 set
Price USD 2400-2800 set
Packaging Details Wood carton
Delivery Time 10-15 work days
Payment Terms T/T, L/C
Supply Ability 100 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Claw Stroke 57mm Maximum Clamping Force 1.6KN
Allowable Pressure 0.3-1MPa Limit Speed 400r/min
Clamping Range 10-165mm Central Height 120mm
Rotational Inertia 0.08kg.㎡ Rotating Part Weight 24kg
Whole Unit Weight 43kg

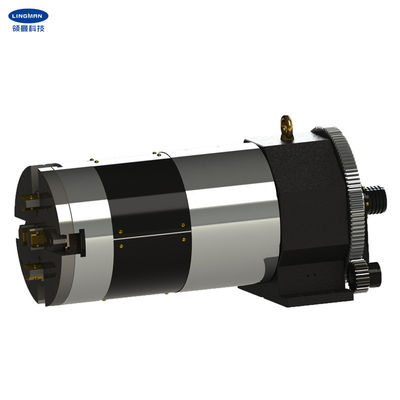

Pneumatic Laser Rotary Chuck


400rpm Laser Rotary Chuck


Laser 4 jaw true chuck

Leave a Message
Product Description
Laser Cutting Machine Chuck with Four Jaw Double Action Pneumatic Chuck for Laser Cutting Machine​

 1. Description


We are a professional supplier focusing on R&D, production and sales of various pneumatic chucks, electric chucks and other power chucks for more than 10 years.


Our laser chuck is specially designed for laser tube cutting equipment. It can be used as an independent rotating spindle with a chuck which can firmly clamp workpiece and rotate simultaneously. Rotary air intake is achieved through the rotator equipped at the end to achieve fast clamping and loosening actions. The air source supplies air continuously during work.


The clamping force of the product is large, the clamping is stable; the adjustment is convenient, the efficiency is high; the rigidity is higher than a long clamping claw, the precision can be maintained for long time, and there is no phenomenon that the bending deformation of the clamping claw affects the rotary precision.


The center of the product is a through structure. In order to make the environment clean and hygienic, the product of this series can be equipped with a dust extraction device on the back.


 2. Performance Parameters


  • Model number:
  • Claw stroke:
  • Maximunm clamping force:
  • Allowable pressure:
  • Limit speed:
  • Clamping range:
  • Central height:
  • Rotational inertia:
  • Rotating part weight:
  • Whole unit weight:


​ 3. Dimensions

Pneumatic Laser Rotary Chuck , Double Action 4 Jaw True Chuck 0

Specifications A B B1 C D E F H M N P Q S T G
W160T-23 200 120 164 258 106 70 185 23 30 3 12.5 M6 18 397 628

 4. Advantages

   a. Full stroke design

   b. Wide range of applications, diversification of processing profiles

   c. High repetitive positioning accuracy
   d. Low maintenance cost, long service life
   e. Multiple configurations are available
     e.1 Solid or hollow

     e.2 Comb-type or mortise-groove type claws


 5. Production Line

Pneumatic Laser Rotary Chuck , Double Action 4 Jaw True Chuck 1

 6. Our Service

  1. We are the direct factory with good price and fast lead time.
  2. Professional design team work with you.

  3. Professional QC team to guarantee the high quality.

  4. Providing OEM & ODM service.
