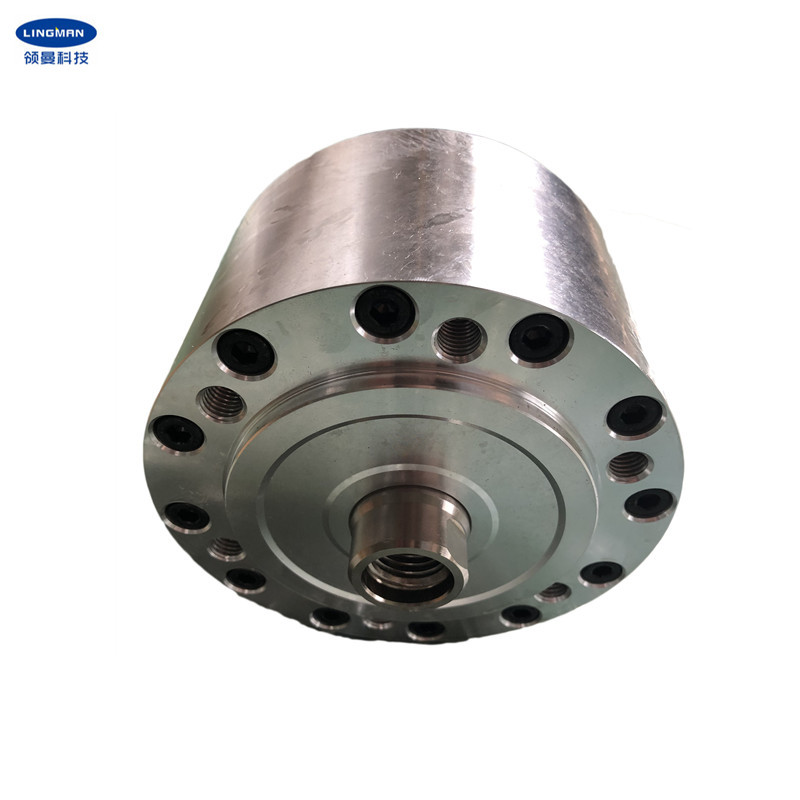

Low Inertia Solid Center Rotary Hydraulic Chuck Cylinder

Product Details

Place of Origin: Changzhou, Jiangsu, China

Brand Name: Lingman

Model Number: RH-80

Payment & Shipping Terms

Minimum Order Quantity: 5 sets

Price: USD 265-780 set

Packaging Details: Wood carton

Delivery Time: 7-15 work days

Payment Terms: T/T, L/C

Supply Ability: 200 sets per month

Get Best Price
Highlight:

Rotary chuck cylinder

,

Hydraulic Chuck Cylinder

,

Low Inertia Rotary cylinder

Product Name:
Hydraulic Cylinder
Model Number:
RH-80
Push Side:
47.7cm2
Pull Side:
42.8cm2
Stroke:
15mm
Max. Numbers Of Revolutions:
6000 R.p.m
Max.working Pressure:
3.5Mpa
Weight:
3.4KG
GD:
0.01kg.m2
Product Name:
Hydraulic Cylinder
Model Number:
RH-80
Push Side:
47.7cm2
Pull Side:
42.8cm2
Stroke:
15mm
Max. Numbers Of Revolutions:
6000 R.p.m
Max.working Pressure:
3.5Mpa
Weight:
3.4KG
GD:
0.01kg.m2
Low Inertia Solid Center Rotary Hydraulic Chuck Cylinder
Low Inertia Solid Center Rotary Hydraulic Cylinder for Power Chuck and CNC Machine

 1. Description


Our hydraulic cylinder is made of dense, light aluminum alloy, low inertia, and light weight. which can reduce the load on the machine spindle.Solid rotary cylinder is high-speed continuous rotation and balanced, long life, internal parts are all imported original parts. High pressure type, long stroke type, and large bore type can be customized according to clients' needs.



Under high-speed rotary state, the product exhibits stable performance and reduces the mechanical load. It is the first choice of accessories for numerical control machines and automatic lathes.




 2. Performance Parameters

Model number

RH-80

Push side

47.7cm2

Pull side

42.8cm2

Stroke

15mm

Max. numbers of revolutions

6000 r.p.m

Max.working pressure

3.5Mpa

Weight

3.4KG


​ 3. Dimensions


 Low Inertia Solid Center Rotary Hydraulic Chuck Cylinder 0



Specifications A B C D E F G H J K L MH8 N 2-P
RH-80 80 15 112 90 65 25 30-45 74 175 M16X30 6-M8X16 / / PT3/8


Low Inertia Solid Center Rotary Hydraulic Chuck Cylinder 1
 4. Advantages


 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e.1 Solid or hollow

  e.2 Comb-type or mortise-groove type claws
