Product Details
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: RH-100
Payment & Shipping Terms
Minimum Order Quantity: 5 sets
Price: USD 265-780 set
Packaging Details: Wood carton
Delivery Time: 7-15 work days
Payment Terms: T/T, L/C
Supply Ability: 200 sets per month
Product Name: |
Hydraulic Cylinder |
Model Number: |
RH-100 |
Push Side: |
75.4cm2 |
Pull Side: |
70.5cm2 |
Stroke: |
20mm |
Max. Numbers Of Revolutions: |
5500 R.p.m |
Max.working Pressure: |
3.5Mpa |
Weight: |
4.9KG |
GD: |
0.04kg.m2 |
Product Name: |
Hydraulic Cylinder |
Model Number: |
RH-100 |
Push Side: |
75.4cm2 |
Pull Side: |
70.5cm2 |
Stroke: |
20mm |
Max. Numbers Of Revolutions: |
5500 R.p.m |
Max.working Pressure: |
3.5Mpa |
Weight: |
4.9KG |
GD: |
0.04kg.m2 |
1. Description
Our company is a professional manufacture in producing chucks both for CNC lathe and laser cutting machine. Except the former priducts, other accessories for lathe machine, we also produce, like hydraulic cylinder, soft and hard jaws for chucks and so on. Customized accessories are also provided.

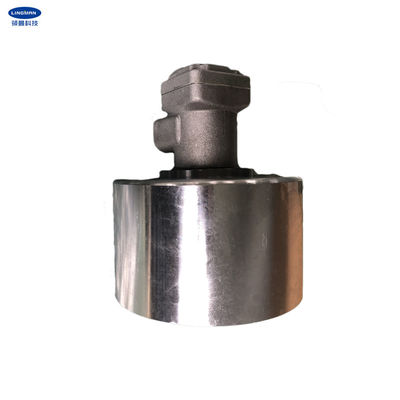

Our hydraulic cylinder is made of dense, light aluminum alloy, low inertia, and light weight. which can reduce the load on the machine spindle.Solid rotary cylinder is high-speed continuous rotation and balanced, long life, internal parts are all imported original parts. High pressure type, long stroke type, and large bore type can be customized according to clients' needs.
Under high-speed rotary state, the product exhibits stable performance and reduces the mechanical load. It is the first choice of accessories for numerical control machines and automatic lathes.
2. Performance Parameters
|
Model number |
RH-100 |
|
Push side |
75.4cm2 |
|
Pull side |
70.5cm2 |
|
Stroke |
20mm |
|
Max. numbers of revolutions |
5500 r.p.m |
|
Max.working pressure |
3.5Mpa |
|
Weight |
4.9KG |
3. Dimensions
| Specifications | A | B | C | D | E | F | G | H | J | K | L | MH8 | N | 2-P |
| RH-100 | 100 | 20 | 135 | 100 | 80 | 30 | 25-50 | 89 | 190 | M20X35 | 6-M10X20 | / | / | PT3/8 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available |
5. Production Line
6. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| s. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
