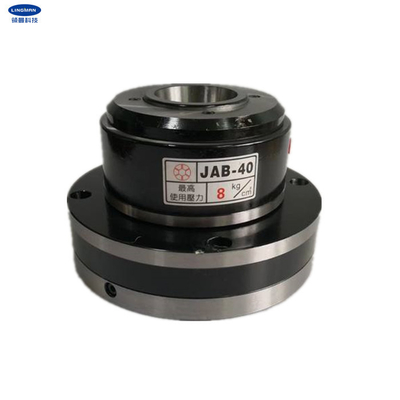

Widely Useful Rotary Collet Chuck for CNC Lathe and Grinding Machine

1 set
MOQ
USD 480-950/set
Price
Widely Useful Rotary Collet Chuck for CNC Lathe and Grinding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Rotary Collet Chuck
Raw Material: Steel
Push Side: 127.4cm²
Pull Side: 119.7cm²
Step Hole: 25mm
Through Hole: 49mm
Max. Clamping Force: 0.4/0.7
Connecting Bolt: 4-M8
Adapter Collet: YB-25
Collet Fixing Screw: 2-M5
Weight: 9.5kg
Application: CNC Lathe Cutting Machine
High Light:

Grinding Machine Rotary Collet Chuck

,

Steel Rotary Collet Chuck

,

4000r/min CNC Lathe Chuck

Basic Infomation
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: JAB-25
Payment & Shipping Terms
Packaging Details: Wood carton
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Product Description
High Speed Rotary Pneumatic Clamp Collet Auto CNC Lathe Chuck

1. Description



Our company mainly produces all kinds of chuck, used for laser cutting machine, CNC lathes, automobile lathes and so on. This chuck can be used for internal expansion and external clamping. Its construction is monolithic heat-treated steel. Bearing no load, chuck high speed performance, long service life. It's still cold when it rotates. The forced opening of the collet is a two-way force. When the pressure is interrupted, the chuck locks itself and remains clamped.

Easy to install, just connect the flange directly to the spindle. It can be connected to the machine system by three-point combination valve. Chuck does not close, can be controlled normally. Body length accuracy within 0.01mm.

Suitable for lathes, CNC lathes, grinding machines, indexing plates, turning batch workpiece, etc. In addition to this collet, other types of collets are also available.

 2. Performance Parameters



  • Model number
JAB-25
  • Push side
127.4cm²
  • Pull side
119.7cm²
  • Working pressure
0.4-0.7MPa
  • Limit speed
4000r/min
  • Step hole
25mm
  • Through hole
25mm
  • Max. clamping force
7.8/7.2
  • Connecting bolt
4-M8
  • Adapter collet
YB-25
  • Collet fixing screw
2-M5



​ 3. Dimensions


Widely Useful Rotary Collet Chuck for CNC Lathe and Grinding Machine 0


Specifications A B C D E F G H I L
JAB-25 167 130 25 108 52 49 5 9 147 105


 4. Advantages



 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e.1 Solid or hollow

  e.2 Comb-type or mortise-groove type claws



5. Our Service



a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.

6. Production Line
