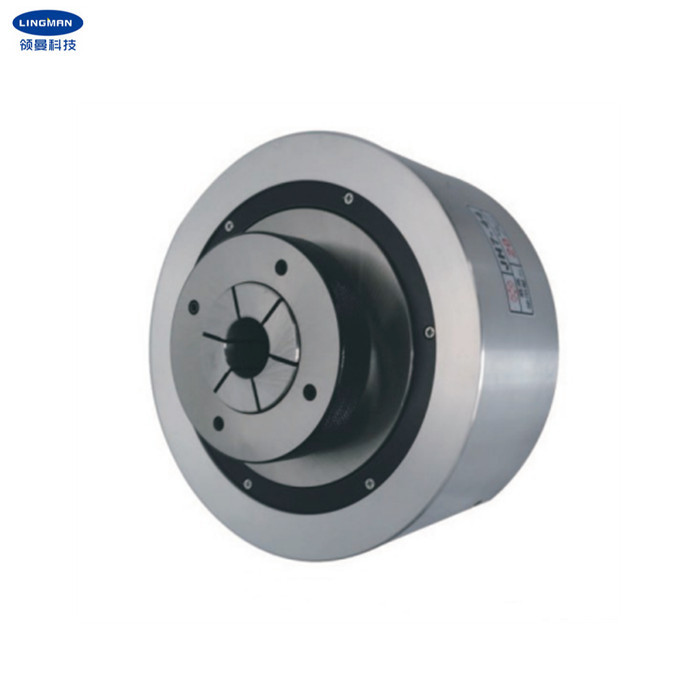

Pneumatic Rotary Collet Chuck High Speed For CNC Lathe And Grinding Machine

Product Details

Place of Origin: Changzhou, Jiangsu, China

Brand Name: Lingman

Model Number: JAB-40

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 470-950/set

Packaging Details: Wood carton

Delivery Time: 15-20 work days

Payment Terms: T/T, L/C

Supply Ability: 100 sets per month

Get Best Price
Highlight:

Pneumatic Rotary Collet Chuck 3500rpm

,

CNC Lathe Rotary Collet Chuck

,

Grinding Machine Laser Rotary Attachment

Product Name:
High Speed Chuck
Push Side:
161.6cm2
Pull Side:
145.5cm2
Limit Speed:
3500 R.p.m
Step Hole:
50mm
Through Hole:
40mm
Max. Clamping Force:
9.7/8.8
Adapter Collet:
16C
Weight:
13.5kg
Application:
Automatic Lathe
Product Name:
High Speed Chuck
Push Side:
161.6cm2
Pull Side:
145.5cm2
Limit Speed:
3500 R.p.m
Step Hole:
50mm
Through Hole:
40mm
Max. Clamping Force:
9.7/8.8
Adapter Collet:
16C
Weight:
13.5kg
Application:
Automatic Lathe
Pneumatic Rotary Collet Chuck High Speed For CNC Lathe And Grinding Machine
Pneumatic Rotary Collet Chuck High Speed for CNC Lathe and Grinding Machine

1. Description



Our company a professional manufacture in producing chucks for laser cutting machine, CNC lathe machiens and accessories for lathes.This kind of chuck can be used for internal expansion and external clamping. The structure of it is integrated heat-treated steel. The bearing has no load and chuck has good ability at high speed and has long service life. It is still in low temperature when rotating. It is two-way power to force to ope the collet. When the pressure is interrupted, the chuck self-locks and assumes a clamping state. It can be locked by the front and installed by the front lock, waterproof and dust-proof. The collet does not retract and can be controlled normally. The length of the body accuracy is within 0.01mm.


It is easy and convenient to install it, just need to directly connect flange to the main shaft. It can be connected to the machine system through a three-point combination valve. The collet does not retract and can be controlled normally. The length of the body accuracy is within 0.01mm.

This chucks is applied to lathes, CNC lathes, grindling machines, indexing plates, turning of batch work-piece and so on. Except this kind of chuck, other types of chucks are also provided.



 2. Performance Parameters



  • Model number
JAB-40
  • Push side
161.6cm2
  • Pull side
145.5cm2
  • Working pressure
0.3-0.8MPa
  • Limit speed
3500r/min
  • Step hole
50mm
  • Through hole
40mm
  • Max. clamping force
9.7/8.8
  • Connecting bolt
4-M8
  • Adapter collet
16C
  • Collet fixing screw
2-M5



3. Dimensions


Pneumatic Rotary Collet Chuck High Speed For CNC Lathe And Grinding Machine 0


Specifications A B C D E F G H I L
JAB-40 187 150 40 133 72 50 5 8.5 168 122


 4. Advantages



 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e.1 Solid or hollow

  e.2 Comb-type or mortise-groove type claws
