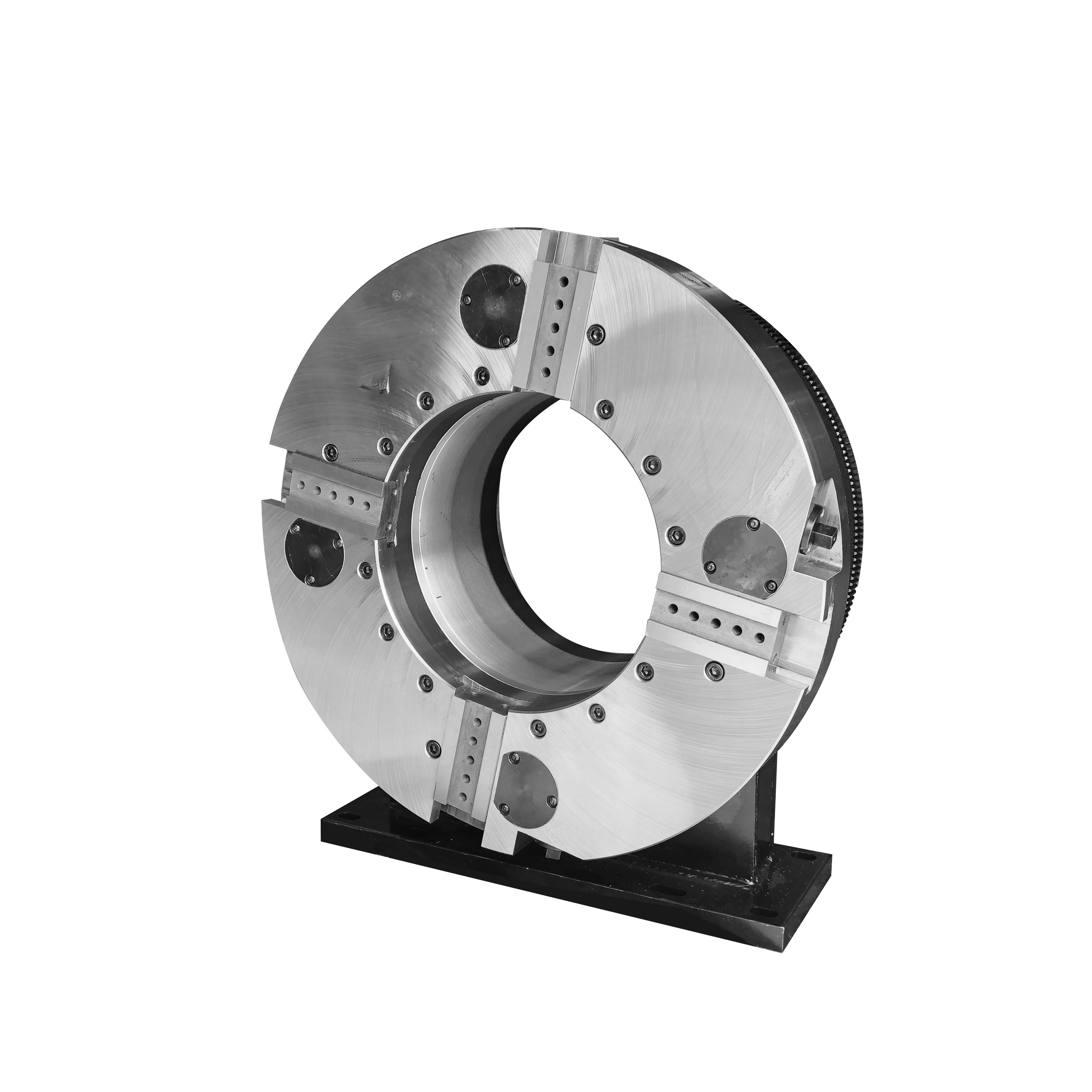

Manual Rotary Pneumatic Collet Chuck Holder G500S For Laser Cutting Machine

Product Details

Place of Origin: CHINA-CHANGZHOU

Brand Name: LINGMAN

Model Number: G500S-220

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $2600-4600

Packaging Details: wooden box,packing measurements depend on products.

Delivery Time: 3-10 work days

Payment Terms: T/T

Get Best Price
Highlight:

Rotary Pneumatic Collet Chuck Holder

,

Manual Pneumatic Collet Chuck Holder

Claw Stroke:
160mm
Clamping Range:
Φ20-Φ215mm
Central Height:
310mm
Rotational Inertia:
3.74Kg.㎡
Claw Stroke:
160mm
Clamping Range:
Φ20-Φ215mm
Central Height:
310mm
Rotational Inertia:
3.74Kg.㎡
Manual Rotary Pneumatic Collet Chuck Holder G500S For Laser Cutting Machine

PRODOCUT OVERWIEW:





G500S Manual Rotary Pnuematic Collet Chuck Holder For Laser Cutting Machine



  Stable rotation, high precision and low noise. Light weight and small moment of inertia can greatly improve cutting efficiency and save energy.



  Manual control of two groups of claws can clamp the workpiece tightly and drive the workpiece to rotate.

The product is a four-jaw dual power manual two-two-center structure,Which can clamp the circular,square,rectangular,elliptical and other centrally axisymmentric parts.



  It can clamp the full range of applicable pipe fittings, the full stroke, and improve the production efficiency. The four-jaw guide is driven by a guide rail mechanism to make the four-jaw linear and stable.Stability and wear resistance are better. It is widely used in pipe processing machine tools such as laser pipe cutting machine, plate and pipe integrated machine.







Model Claw Stroke Limit Speed Clamping range Central height Rotational inertia Rotating part weight Whole unit weight
G400S-165 140mm 500 0-160 260 1.85 82 95
G500S-220 160 500 20-215 310 3.74 108 158



SIMILIAR PRODUCT:

Manual Rotary Pneumatic Collet Chuck Holder G500S For Laser Cutting Machine 0Manual Rotary Pneumatic Collet Chuck Holder G500S For Laser Cutting Machine 1Manual Rotary Pneumatic Collet Chuck Holder G500S For Laser Cutting Machine 2Manual Rotary Pneumatic Collet Chuck Holder G500S For Laser Cutting Machine 3





WORK SHOP:

Manual Rotary Pneumatic Collet Chuck Holder G500S For Laser Cutting Machine 4Manual Rotary Pneumatic Collet Chuck Holder G500S For Laser Cutting Machine 5





WHY CHOOSE LINGMAN:

A: Professional Factory:

We have 20year special experience in manufacturing& exporting gears.Our imporoved and advanced enquipment and owned skilled
technician so ensure you best quality and definitely with our best factory competitive price.



B:Good material and Quality:



Since we are honest factory,we expect and look forward long cooperation,So material and quality we paid high attention. And for
quality we usually checkout during the production twice to control the quality,and we can also test on machine



C.Technicial support:



We can revise size as your request to meet your machine.



D.Best services:

We do best effort we can to our customers.





FAQ

Q: What parameters should we offer us for proper quotation?

A: Application, dimension, quantity, packing requirements.


Q:What's your advantages?

A:Honest business with competitive price and professional service on export process.



Q: Can we visit your company to inspect products before delivery?

A: You are welcome to visit our company to inspect us and our products.

Q:What's your lead time?
A: Within 15-35 days after confirming the order.



Q: What are your payment terms?

A: T/T, L/C, West Union, Paypal, etc.
