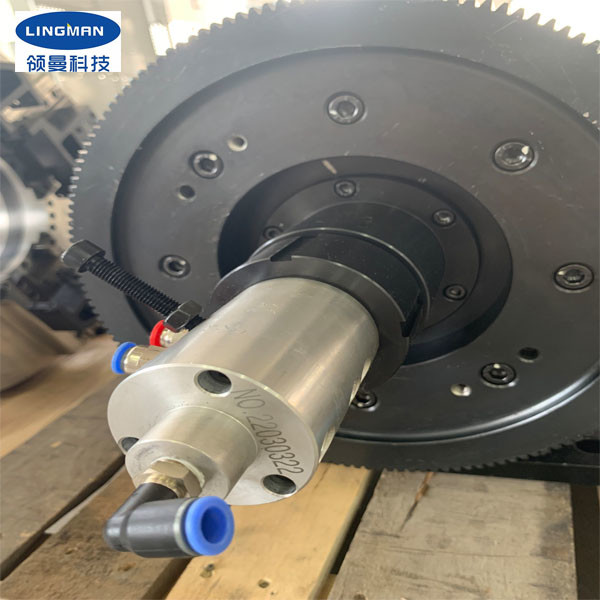

Rotary Back Chuck Pneumatic 4 Jaw For Fiber Laser Cutting Machine

Product Details

Place of Origin: Changzhou, Jiangsu, China

Brand Name: Lingman

Model Number: W165J

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 2400-2900/set

Packaging Details: Wood carton

Delivery Time: 15-20 work days

Payment Terms: T/T, L/C

Supply Ability: 50 sets per month

Get Best Price
Highlight:

Pneumatic Rotary Back Chuck

,

Laser Cutting Machine Rotary Back Chuck

Product Name:
Back Chuck
Claw Stroke:
33mm
Allowable Pressure:
0.3-1MPa
Clamping Range:
10-165mm
Central Height:
175mm
Limit Speed:
500r/min
Product Name:
Back Chuck
Claw Stroke:
33mm
Allowable Pressure:
0.3-1MPa
Clamping Range:
10-165mm
Central Height:
175mm
Limit Speed:
500r/min
Rotary Back Chuck Pneumatic 4 Jaw For Fiber Laser Cutting Machine

Rotary Back Chuck Pneumatic 4 Jaw for Fiber Laser Cutting Machine

1. Description



The product is specially designed for laser tube cutting equipment.



The product itself can be used as an independent rotating spindle with a chuck that can firmly clamp the work- piece while rotating.



Rotary air intake is achieved through the gyrator equipped at the end to achieve fast clamping and loosening actions. The air source supplies air continuously during work.



Explore International Market, Win- Win Cooperations!





 2. Performance Parameters



  • Model number
W165J
  • Claw stroke
70mm
  • Maximunm clamping force
4.3KN
  • Allowable pressure
0.3-1.0MPa
  • Limit speed
500r/min
  • Clamping range
10-165mm
  • Central height
175mm
  • Rotational inertia
0.3kg.m2
  • Rotating part weight
69kg
  • Whole unit weight
95kg



3. Dimensions


Rotary Back Chuck Pneumatic 4 Jaw For Fiber Laser Cutting Machine 0


Specifications A B B1 C D E F G I J L M N O P Q R S T
W220J 300 200 204 417 200 150 250 813.5 160 198 20 36 4 5 22 M8 8-M10 18 420.5


 4. Advantages



 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e.1 Solid or hollow

  e.2 Comb-type or mortise-groove type claws



 5. Production Line

Rotary Back Chuck Pneumatic 4 Jaw For Fiber Laser Cutting Machine 1

 6. Our Service



 a. We are the direct factory with good price and fast lead time.
 b. Professional design team work with you.
 c. Professional QC team to guarantee the high quality.
 d. Providing OEM & ODM service.
