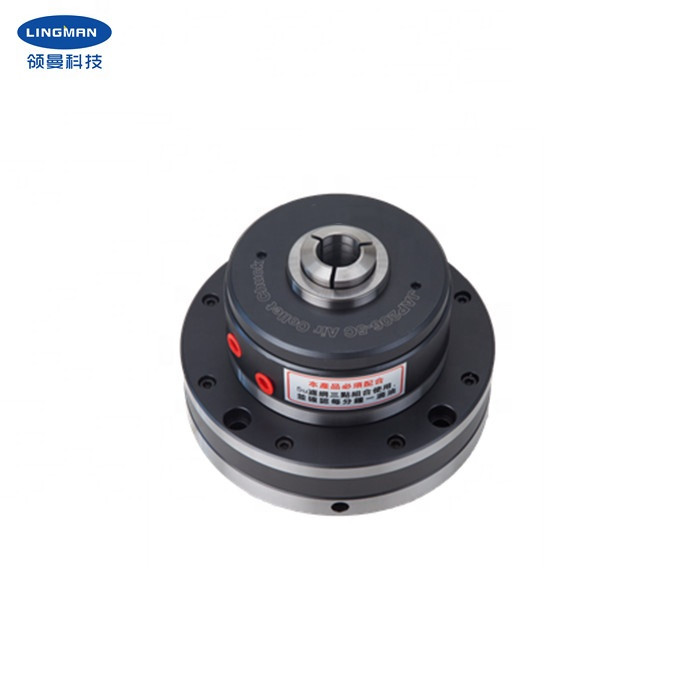

Hydraulic / Pneumatic Clamping Collet Chuck For CNC Cutting Machine

1 set
MOQ
USD 480-950/set
Price
Hydraulic / Pneumatic Clamping Collet Chuck For CNC Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: JAS-25
Raw Material: Steel, Stainless Steel
Push Side: 115cm²
Pull Side: 105cm²
Step Hole: 20mm
Through Hole: 20mm
Max. Clamping Force: 0.95
Connecting Bolt: 2-M8
Collet Fixing Screw: 4-M6
Weight: 8kg
High Light:

Pneumatic Clamping Collet Chuck

,

Hydraulic Clamping Collet Chuck

,

CNC Cutting Machine Clamping Collet Chuck

Basic Infomation
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: JAS-25
Payment & Shipping Terms
Packaging Details: Wood carton
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Product Description

Hydraulic / Pneumatic Clamping Collet Chuck For CNC Cutting Machine

1. Description
 Hydropneumatic fixed quick collet (vertical collet) has a compact volume, allowing your work platform to accommodate more fixed collet at the same time for increased efficiency. The high quality of the product meets your requirements of stability, high precision, waterproof and dustproof, and reduces maintenance and labor costs. It is suitable for installation on all kinds of drilling and milling machines. This fixed chuck has the following advantages: 1. High precision, high rigidity, long product life 2. Chuck dustproof, anti-chip, anti-cutting fluid 3. Chuck forced feeding design, no material jam 4. Small size, light weight, fast working speed


 2. Performance Parameters

  • Model number
JAS-25
  • Push side
112cm²
  • Pull side
100cm²
  • Working pressure
0.8MPa
  • Step hole
25mm
  • Through hole
25mm
  • Max. clamping force
13/17
  • Connecting bolt
4-M8
  • Collet fixing screw
2-M6


​ 3. Dimensions

Hydraulic / Pneumatic Clamping Collet Chuck For CNC Cutting Machine 0


SpecificationsABCDEFGHI
JAS-25144602510078112118916


 4. Advantages


 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e.1 Solid or hollow

  e.2 Comb-type or mortise-groove type claws


5. Our Service


a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.

6. Production Line
Hydraulic / Pneumatic Clamping Collet Chuck For CNC Cutting Machine 1
