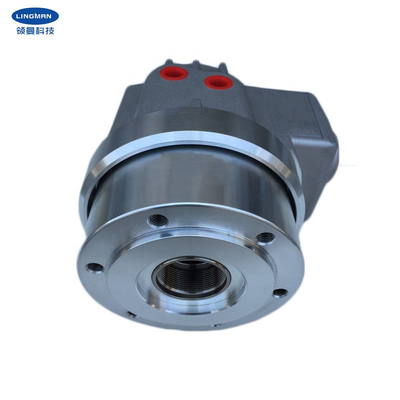

Low Inertia Hollow Center Rotary Hydraulic Chuck Cylinder For CNC Lathe

Low Inertia Hollow Center Rotary Hydraulic Chuck Cylinder For CNC Lathe
Low Inertia Hollow Center Rotary Hydraulic Chuck Cylinder For CNC Lathe Low Inertia Hollow Center Rotary Hydraulic Chuck Cylinder For CNC Lathe Low Inertia Hollow Center Rotary Hydraulic Chuck Cylinder For CNC Lathe Low Inertia Hollow Center Rotary Hydraulic Chuck Cylinder For CNC Lathe Low Inertia Hollow Center Rotary Hydraulic Chuck Cylinder For CNC Lathe Low Inertia Hollow Center Rotary Hydraulic Chuck Cylinder For CNC Lathe Low Inertia Hollow Center Rotary Hydraulic Chuck Cylinder For CNC Lathe Low Inertia Hollow Center Rotary Hydraulic Chuck Cylinder For CNC Lathe Low Inertia Hollow Center Rotary Hydraulic Chuck Cylinder For CNC Lathe
Basic Information
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: TH-536
Minimum Order Quantity: 5 sets
Price: USD 258-1188 set
Packaging Details: Wood carton
Delivery Time: 7-15 work days
Payment Terms: T/T, L/C
Supply Ability: 200 sets per month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Model Number: TH-536 Push Side: 69.9cm²
Pull Side: 67.6cm2 Allowable Pressure: 4.0 MPa
Limit Speed: 8000 R.p.m. Total Oil Leakage: 3.2 Lit/min
Position Stroke: 16mm Net Weight: 8.5 Kg
High Light:

Low Inertia Hydraulic Chuck Cylinder

,

Hollow Center Rotary Hydraulic Chuck Cylinder

Low Inertia Hollow Center Rotary Hydraulic Chuck Cylinder For CNC Lathe

 1. Description

This kind of cylinder is a light rotary cylinder with through hole, which can process long shaft parts. Check valve built-in self-locking mechanism to prevent pipe damage and pressure source loss, to ensure the stability of workpiece clamping. The cylinder is safe and reliable, high speed, long service life, all the internal parts are imported original. And can be customized according to the different requirements of customers.
Rotary cylinder uses a certain pressure of hydraulic oil acting on the side of the sector rotor to generate force. The rotor is fixed with the shaft, and the rotor turns the shaft. Stator and rotor outside the same radius as the rotor fan hole. Rotor and housing type moving parts should be sealed. The hydraulic rotary cylinder is a tight fitting that uses hydraulic pressure in a small space to achieve a very high torque. Although the power is high they can still be easily controlled.
Large rotary through hole hydraulic cylinder can accommodate a full range of multi-size pipelines.




 2. Performance Parameters

Model number

TH-536

Push side

69.8cm²

Pull side

67.5cm²

Allowable pressure

4.0MPa

Limit speed

8000r.p.m.

Stroke

15mm

Weight

8.5KG


​ 3. Dimensions


 Low Inertia Hollow Center Rotary Hydraulic Chuck Cylinder For CNC Lathe 0



4. Advantages


 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e.1 Solid or hollow

  e.2 Comb-type or mortise-groove type claws





5. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
s. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.


6. Production Line
Low Inertia Hollow Center Rotary Hydraulic Chuck Cylinder For CNC Lathe 1
