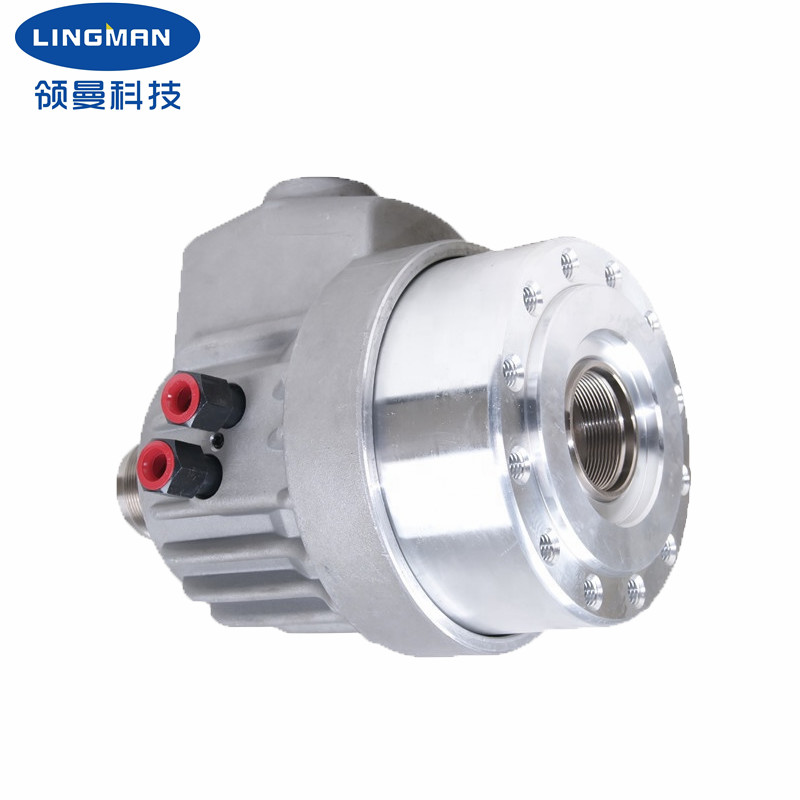

20mm Stroke Hydraulic Rotary Chuck Cylinder Through Hole for CNC Lathe

5 sets
MOQ
USD 258-1188 set
Price
20mm Stroke Hydraulic Rotary Chuck Cylinder Through Hole for CNC Lathe
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: TH-865
Push Side: 132.47cm²
Pull Side: 119.9cm2
Allowable Pressure: 4.0 MPa
Limit Speed: 5500 R.p.m.
Total Oil Leakage: 4.0 Lit/min
Position Stroke: 20mm
Net Weight: 18.9kg
Highlight:

Hydraulic Rotary Chuck Cylinder

,

20mm Stroke Rotary Chuck Cylinder

Basic Infomation
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: TH-865
Payment & Shipping Terms
Packaging Details: Wood carton
Delivery Time: 7-15 work days
Payment Terms: T/T, L/C
Supply Ability: 200 sets per month
Product Description
Reliable Large Through-Hole Type Rotary Hydraulic Lathe Cylinder

 1. Description

This kind of cylinder is a light rotary cylinder with through hole, which can process long shaft parts. Check valve built-in self-locking mechanism to prevent pipe damage and pressure source loss, to ensure the stability of workpiece clamping. The cylinder is safe and reliable, high speed, long service life, all the internal parts are imported original. And can be customized according to the different requirements of customers.
The hollow rotary cylinder needs to work with the hollow tie rod, and the appropriate cylinder is selected according to the size of the stroke. It can pass through the bar workpiece in the middle, which is suitable for batch workpiece production and realizes full automation. One person can operate multiple machines, thereby reducing personnel costs.
Air rotary cylinder product features:
(1) Small weight: compared with traditional products, small and light weight. High speed rotary performance is more stable, more reduce mechanical load.
(2) larger solid through hole: compared with the previous products about 20% of the solid through hole, can make the full use of mechanical ability.
Large rotary through hole hydraulic cylinder can accommodate a full range of multi-size pipelines.




 2. Performance Parameters

Model number

TH-865

Push side

132.47cm²

Pull side

119.9cm²

Allowable pressure

4.0MPa

Limit speed

5500r.p.m.

Stroke

20mm

Weight

18.9KG


​ 3. Dimensions


 20mm Stroke Hydraulic Rotary Chuck Cylinder Through Hole for CNC Lathe 0



4. Advantages


 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e.1 Solid or hollow

  e.2 Comb-type or mortise-groove type claws





5. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
s. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.


6. Production Line
20mm Stroke Hydraulic Rotary Chuck Cylinder Through Hole for CNC Lathe 1
