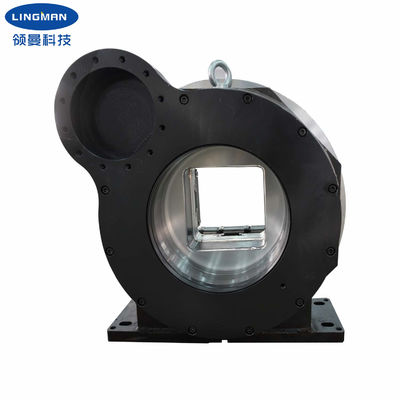

Square Hole Rotary Chuck 4 Jaws Chuck for Laser Pipe Cutting Machine

Category:
Laser Rotary Chuck
Price:
USD 4600-5000 set
Payment Method:
T/T, L/C
Specifications
Model:
G360CF-130
Whole Unit Weight:
134Kg
Diameter:
124mm
Maximum Clamping Force:
0.6KN
Allowable Pressure:
0.2-0.9MPa
Limit Speed:
200R/Min
Clamping Range:
4-128mm
Central Height:
235mm
Rotational Inertia:
1.42kg.㎡
Rotating Part Weight:
71Kg
Highlight:

Square Hole Rotary Chuck

,

Pipe Cutting 4 Jaws Chuck

,

Rotary 4 Jaws Chuck

Introduction
High Performance Square Hole Rotary Chuck 4 Jaws Chuck for Laser Pipe Cutting Machine

1. Description



 Lingman Machinery Technology (Changzhou) Co., Ltd. was established on June 8, 2020 and has passed ISO9001:2015   quality management system certification. It is an enterprise that focuses on R&D, production and sales of various power   clamps and chucks for laser pipe cutting machines, pneumatic chucks, electric chucks, hydraulic chucks, digital chucks and   other power chucks. Our company has a professional technical R&D team and innovative R&D and design capabilities.



 This product is specially designed for laser tube cutting equipment. The product itself can be used as an independent rotating   spindle, and a chuck in it can firmly clamp work-piece and rotate simultaneously. The quick clamping and loosening actions   can be realized by side rotation and air intake.

 The chuck can work in full stroke without additional adjustment of four claws. It can clamp all applicable pipe fittings and   improve production efficiency. The product is widely used in special laser pipe cutters and other pipe processing machine   systems.
Square Hole Rotary Chuck 4 Jaws Chuck for Laser Pipe Cutting MachineSquare Hole Rotary Chuck 4 Jaws Chuck for Laser Pipe Cutting MachineSquare Hole Rotary Chuck 4 Jaws Chuck for Laser Pipe Cutting Machine


2. Performance Parameters



Product name

Pneumatic rotary chuck

Model number

G360CF-130

Claw stroke

124mm

Maximum clamping force

0.6KN

Alloable pressure

0.2-0.9MPa

Limit speed

200/min

Clamping range

4-128mm

Central height

235mm

Rotational  inertia

1.42kg.㎡

Rotating part weight

71kg

Whole unit weight

134kg



Note: Above numbers are standard parameters. We can also design products according to clients' special requirements.



3. Dimensions


Square Hole Rotary Chuck 4 Jaws Chuck for Laser Pipe Cutting Machine


Specifications A B B1 C D E F G H I J K O R S
G360CF-130 430 235 440 620 120 80 368 272 130 200 324 / / 12-M6 18X33


4. Advantages



 a. Full stroke designed pneumatic rotary chuck
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available

   e.1 Solid or hollow

   e.2 Comb-type or mortise-groove type claws



5. Our Service



a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.



6. Production Line

Square Hole Rotary Chuck 4 Jaws Chuck for Laser Pipe Cutting Machine

Square Hole Rotary Chuck 4 Jaws Chuck for Laser Pipe Cutting MachineSquare Hole Rotary Chuck 4 Jaws Chuck for Laser Pipe Cutting MachineSquare Hole Rotary Chuck 4 Jaws Chuck for Laser Pipe Cutting Machine

Send RFQ
Stock:
MOQ:
1 set
