Rod Type Hollow Laser Rotary Chuck Double Acting Feeding Full Through Hole
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Laser Rotary Chuck | Claw Stroke | 57mm |
---|---|---|---|
Maximum Clamping Force | 1.6KN | Allowable Pressure | 0.3-1.0MPa |
Limit Speed | 400r/min | Clamping Range | 10-165mm |
Central Height | 120mm | Rotational Inertia | 0.08kg.㎡ |
Feature | Through Strcture Center | Material | Steel, Stainless Steel |
Highlight | Rod Type Hollow Four Jaw Chuck,Double Acting Feeding Four Jaw Chuck,Full Through Hole Laser Rotary Chuck |
1. Description
30 workers, 5000m² workshop, 15 years experience,15 years' vendor of Chinese Chuck , ISO, CE certificated, two hour reach Shanghai port,this is how our company keep good quality and competitive prices for global valued customers.

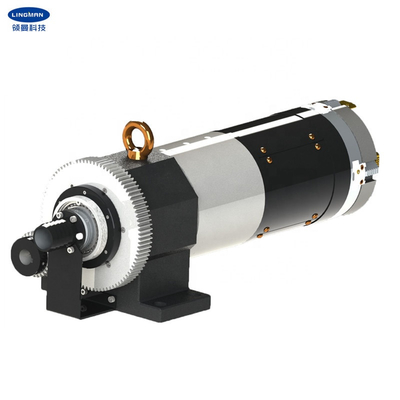

Our laser rotary chuck is specially designed for laser tube cutting equipment. It can be used as an independent rotating spindle with a chuck which can firmly clamp workpiece and rotate simultaneously. Rotary air intake is achieved through the rotator equipped at the end to achieve fast clamping and loosening actions. The air source supplies air continuously during work.
The clamping force of the laser rotary chuck is large, the clamping is stable; the adjustment is convenient, the efficiency is high; the rigidity is higher than a long clamping claw, the precision can be maintained for long time, and there is no phenomenon that the bending deformation of the clamping claw affects the rotary precision.
The center of the laser rotary chuck is a through structure. In order to make the environment clean and hygienic, the product of this series can be equipped with a dust extraction device on the back.
2. Performance Parameters
|
Laser rotary chuck |
|
W160T-23 |
|
57mm |
|
1.6KN |
|
0.3-1.0MPa |
|
400r/min |
|
10-165mm |
|
120mm |
|
0.08kg.m² |
|
24kg |
|
43kg |
3. Dimensions
Specifications | A | B | B1 | C | D | E | F | H | M | N | P | Q | S | T | G |
W160T-23 | 200 | 120 | 164 | 258 | 106 | 70 | 185 | 23 | 30 | 3 | 12.5 | M6 | 18 | 397 | 628 |
4. Advantages
a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life
e. Multiple configurations are available
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws
5. Our Service
1. We are the direct factory with good price and fast lead time.
2. Professional design team work with you.
3. Professional QC team to guarantee the high quality.
4. Providing OEM & ODM service.
6. Production Line
