| MOQ: | 1 |
| Price: | ＄150-＄1700 |
| Standard Packaging: | wooden box,packing measurements depend on products. |
| Delivery Period: | 3-10 work days |
| Payment Method: | T/T |
PRODOCUT OVERWIEW:

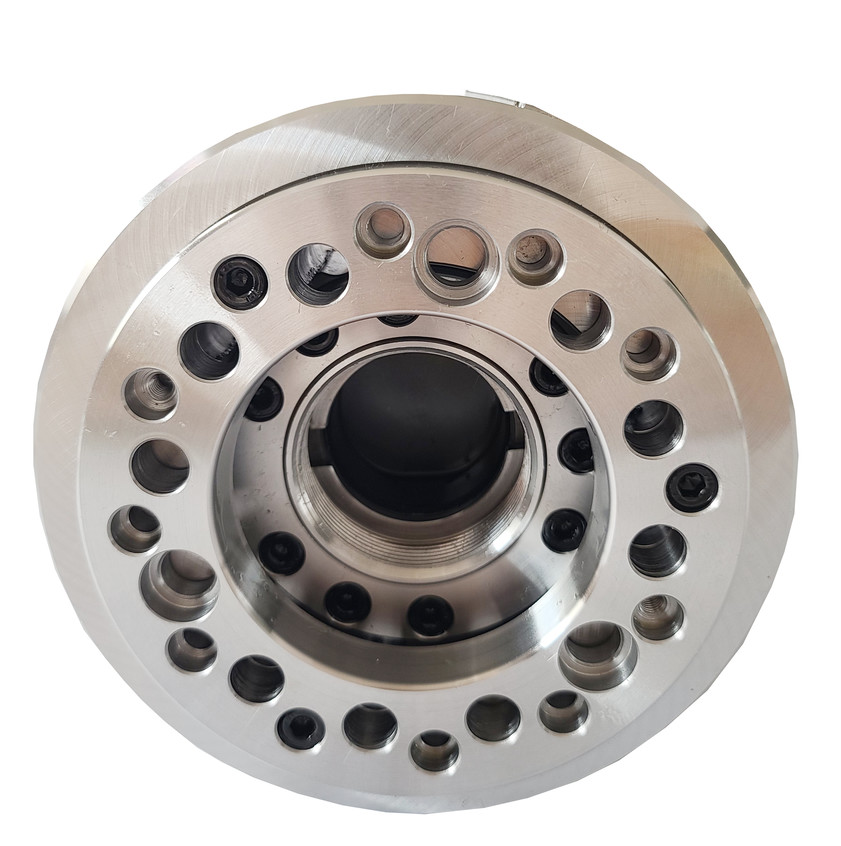

KT05-3 Stainless steel 3-Jaw chuck for SC CNC machine lathe Power chuck
Short cylinder rear-lock screw connection form
The chuck is easy to be installed,and its connection way follow industry standards without changing the Initial machine tool structure,the cylinder and chuck are integrated and developed,and one chuck can be installed in front of machine tools respectively to use at the same time
The chuck has a huge core diameter,and includes a one-way valve and has the function of reliable clamping,while the chuck is rotating,the sealing device is in the disengaged position,so it has a long life.
Dust and Liquid proof cover: Design with Labyrinth Seal Rings, prevent the metal chips and coolant into the internal cylinder to guarantee chuck's performance and service life.
| Spec. | Plunger stroke | Jaw stroke | Max.Clamping range | Min.Clamping range | Weight | Matching Cyl. | Max.Pressure |
| KT04-3 | 10 | 5.4 | 110 | 7 | 4 | TK428 | 2.3 |
| KT05-3 | 10 | 5.4 | 135 | 12 | 6.7 | TK536 | 2.9 |
| KT06-3 | 12 | 5.5 | 168 | 15 | 11.9 | TK646 | 2.8 |
| KT08-3 | 16 | 7.4 | 210 | 13 | 22.5 | TK852 | 2.8 |
| KT10-3 | 19 | 8.8 | 254 | 31 | 34.5 | TK1075 | 2.7 |
| KT12-3 | 23 | 10.6 | 304 | 34 | 56.6 | TK1291 | 2.7 |
| KT15-3 | 23 | 10.6 | 381 | 50 | 120 | TK1512 | 2.1 |
SIMILIAR PRODUCT:
WORK SHOP:
FAQ:
Q:What's the OEM serivce of OREE LASER?
WHY CHOOSE LINGMAN:
A: Professional Factory:
We have 20year special experience in manufacturing& exporting gears.Our imporoved and advanced enquipment and owned skilled
technician so ensure you best quality and definitely with our best factory competitive price.
B:Good material and Quality:
Since we are honest factory,we expect and look forward long cooperation,So material and quality we paid high attention. And for
quality we usually checkout during the production twice to control the quality,and we can also test on machine
C.Technicial support:
We can revise size as your request to meet your machine.
D.Best services:
We do best effort we can to our customers.
|
|
