1. Description

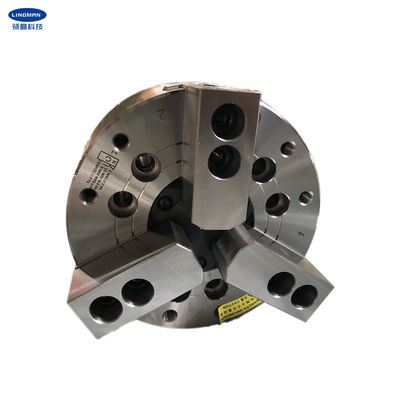

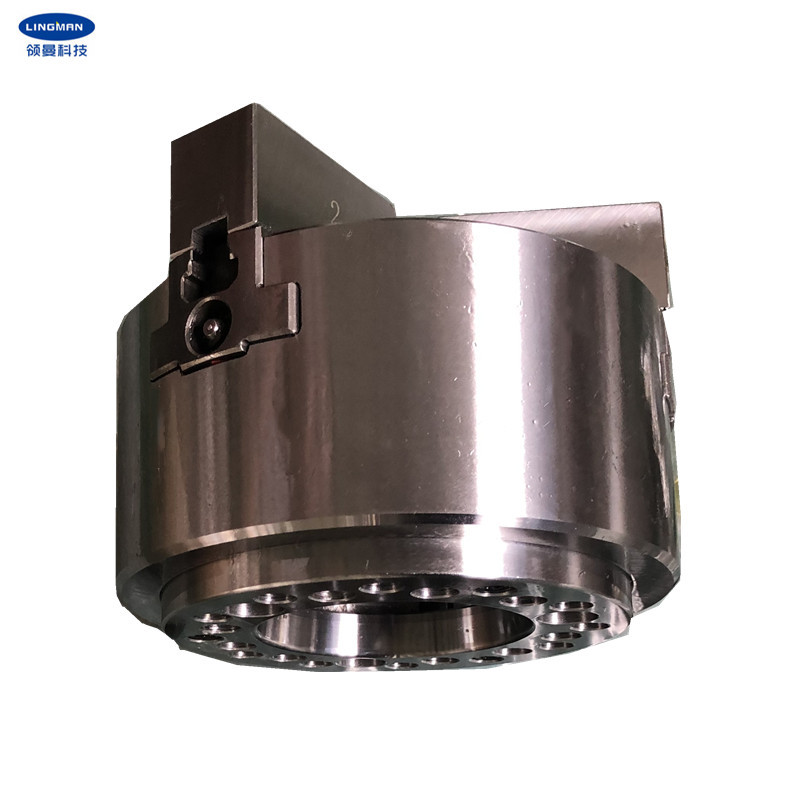

Our chuck is a wedge-hook 3 jaws with large through-hole, so it can process the bar material and performed work-piece. It is suitable for clamping part of a work-piece inserted into the through hole, checking the seat, or modifying spindle coolant specifications.
The chuck is solid and durable and it can operate smoothly at high speed. All sliding surfaces of the chuck are processed through hardened treatment, precision grinding and directly lubricated.It also has high accuracy for positioning repetition and large clamp force and suitable for automatic production. The through hole design can be used for long work-piece processing.
4 inch, 5 inch, 6 inch, 8 inch, 10 inch, 12 inch and 15 inch of power chucks are also provided. Besides former, customized power chucks are also provided.
2. Performance Parameters
|
Model number |
3H-12A8 |
|
Wedge stroke |
23mm |
|
Claw stroke/diameter |
10.6mm |
|
Clamping diameter |
34-304mm |
|
Max. D.B pull |
54.9KN |
|
Max. clamping force |
143.6KN |
|
Weight |
59.9KG |
|
Max.working pressure |
2.7Mpa |
|
Max. number of revolutions |
3300 r.p.m |
|
Applicable rotary cylinder |
TH-1291 |
3. Dimensions
| Specifications | A | B | C | D | D1 | D2 | E | E1 | F | G max. | G min. | H | J |
| 3H-12A8 | 304 | 110 | 220 |
171.4 |
139.72 | 190 | 6 | 18 | 81 | 26 | 3 | 28 | 50 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available e.2 Comb-type or mortise-groove type claws |
5. Production Line
6. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| s. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
|
|
