Product Details
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: K11-315
Payment & Shipping Terms
Minimum Order Quantity: 5 sets
Price: USD 95-135 set
Packaging Details: Wood carton
Delivery Time: 7-15 work days
Payment Terms: T/T, L/C
Supply Ability: 200 sets per month
Product Name: |

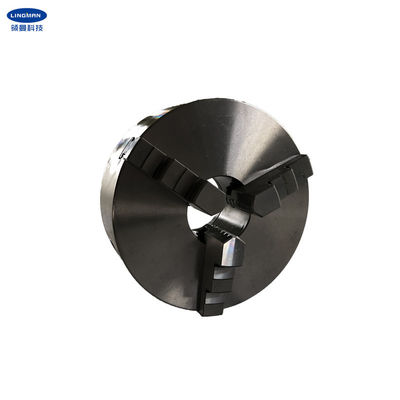

Three-jaw Self-centering Chuck |
Material: |
Stainless Steel |
Number Of Jaws: |
Three Jaws |
Diameter: |
260mm |
Limit Speed: |
1900r/min |
Max. Torque: |
400Nm |
Weight: |
47KG |
Usage: |
Clamp Work-piece |
Application: |
Lathe |
Power: |
Manual |
Feature: |
High Accuracy |
Product Name: |
Three-jaw Self-centering Chuck |
Material: |
Stainless Steel |
Number Of Jaws: |
Three Jaws |
Diameter: |
260mm |
Limit Speed: |
1900r/min |
Max. Torque: |
400Nm |
Weight: |
47KG |
Usage: |
Clamp Work-piece |
Application: |
Lathe |
Power: |
Manual |
Feature: |
High Accuracy |
1. Description
Lingman Machinery is a professional manufacture in producing chucks both for CNC lathe and laser cutting machine. This series of chucks are specially for lathe machine. The three-jaw self-centering chuck standard is an important basis for product design, manufacturing, and acceptance, and it also provides a reference for the host computer.
Three-jaw self-centering chucks are mostly used in metal machine tools. They can self-center to clamp or hold round, triangular or hexagonal and other shapes of outer or inner surface work-pieces for various machining and clamping. The tightening force is adjustable and the centering accuracy is high, which can meet the accuracy requirements of ordinary machine tools.
Features:
1. Short cylinder center mounting.
2. Model K11 chucks are provided with one-piece jaws (which includes a set of internal jaws and a set of external jaws).
3. The raw material of chuck is steel.
4. All kinds of soft jaws are also provided.
2. Dimensions
| Model Number | D1 | D2 | D3 | H | H1 | H2 | h | S | z-d | Max.Torque | Limit Speed | Weight |
| 250 | 206 | 226 | 80 | 120 | 80 | / | 5 | 12 | 3-M12 | 320 | 2400 | 25.7 |
3. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available |
4. Production Line
5. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| s. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
