230mm Full Stroke Pneumatic Rotary Chuck High Repeated Positioning Accuracy
  • name
  • name
  • name
  • name

230mm Full Stroke Pneumatic Rotary Chuck High Repeated Positioning Accuracy

MOQ: 1 set
Price: USD 5200-5800 set
Standard Packaging: Wood carton
Delivery Period: 10-15 work days
Payment Method: T/T, L/C
Supply Capacity: 100sets per month
Details Information
Product Description
Detail Information
Place of Origin
Changzhou, Jiangsu, China
Brand Name
Lingman
Model Number
G500D-230
Claw Stroke:
210mm
Maximum Clamping Force:
1.5KN
Allowable Pressure:
0.2-0.9MPa
Limit Speed:
200r/min
Clamping Range:
10-230mm
Central Height:
315mm
Rotational Inertia:
4.6kg.㎡
Rotating Part Weight:
128kg
Whole Unit Weight:
245kg
Highlight:

230mm Pneumatic Rotary Chuck

,

200rpm Pneumatic Rotary Chuck

,

ISO pneumatic chuck for lathe

Product Description

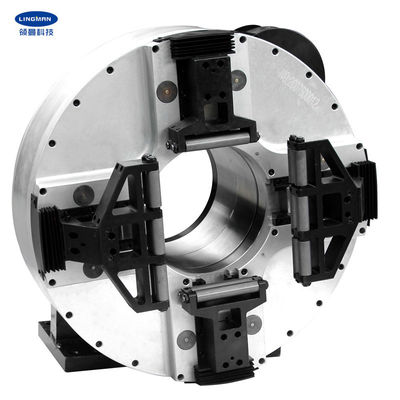

230mm Diameter Full Stroke Pneumatic Chucks with High Repeated Positioning Accuracy for CNC Lathe

1. Description



This chuck is specially designed for laser tube cutting equipment. The chuck itself can be used as an independent rotating spindle, and it can firmly clamp work-piece and rotate at the same time. The quick clamping and loosening actions can be realized by side rotation and air intake. Disconnect the air source before operation. After the product base is fixed, to clamp and rotate the work-piece, it only needs to equip with a matching motor and connect it with the gear and meanwhile connect the compressed air source(0.2-0.9Mpa).



With cross roller bearing, it has longer service life, higher rotary accuracy and repeated positioning accuracy than traditional laser chuck, and greater clamping force than similar chucks in the market. In the case of low air pressure, a smaller clamping force can be obtained, thereby satisfying the need of processing thin-walled pipe fittings. The chuck is widely used in special laser pipe cutters and other pipe processing machine systems.



2. Performance Parameters



Model number

 G500D-230
Claw stroke 210mm
Maximum clamping force 1.5KN
Alloable pressure 0.2-0.9MPa
Limit speed 200r/min
Clamping range 10-230mm
Central height 315mm
Rotational  inertia 4.6kg.m2
Rotating part weight 128kg
Whole unit weight 245kg



Note: above numbers are standard parameters. We can also design products according to clients' special requirements.



​3. Dimensions


230mm Full Stroke Pneumatic Rotary Chuck High Repeated Positioning Accuracy 0


Specifications A B B1 C D E F G H I J K O R S
G500D-230 420 315 600 615 220 60 380 361.5 230 265 250 470 6 12-M8 18X22




4. Advantages



 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available

   e.1 Solid or hollow

   e.2 Comb-type or mortise-groove type claws





5. Production Line

230mm Full Stroke Pneumatic Rotary Chuck High Repeated Positioning Accuracy 1

6. Our Service



 a.We are the direct factory with good price and fast lead time.
 b.Professional design team work with you.
 c.Professional QC team to guarantee the high quality.
 d.Providing OEM & ODM service.





Tags:

150rpm four jaw independent chuck,

315mm Pneumatic Rotary Chuck,

OEM Pneumatic Rotary Chuck
