4 Jaw Pneumatic Rotary Chuck High Production Efficiency

4 Jaw Pneumatic Rotary Chuck High Production Efficiency
4 Jaw Pneumatic Rotary Chuck High Production Efficiency 4 Jaw Pneumatic Rotary Chuck High Production Efficiency 4 Jaw Pneumatic Rotary Chuck High Production Efficiency 4 Jaw Pneumatic Rotary Chuck High Production Efficiency 4 Jaw Pneumatic Rotary Chuck High Production Efficiency 4 Jaw Pneumatic Rotary Chuck High Production Efficiency 4 Jaw Pneumatic Rotary Chuck High Production Efficiency 4 Jaw Pneumatic Rotary Chuck High Production Efficiency 4 Jaw Pneumatic Rotary Chuck High Production Efficiency 4 Jaw Pneumatic Rotary Chuck High Production Efficiency 4 Jaw Pneumatic Rotary Chuck High Production Efficiency 4 Jaw Pneumatic Rotary Chuck High Production Efficiency
Basic Information
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: G500C-225
Minimum Order Quantity: 1 set
Price: USD 6900-7500 set
Packaging Details: Wood carton
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 50 sets per month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Product Name: Full Stroke Chuck Raw Material: Stainless Steel
Claw Stroke: 200mm Maximum Clamping Force: 1.6-2.77KN
Allowable Pressure: 0.1-0.9MPa Limit Speed: 130r/min
Clamping Range: 0-225mm Central Height: 315mm
Rotational Inertia: 6.1kg.㎡ Rotating Part Weight: 140kg
Whole Unit Weight: 240kg
High Light:

225mm Pneumatic Rotary Chuck

,

130rpm Pneumatic Rotary Chuck

,

Full Stroke Main Chuck

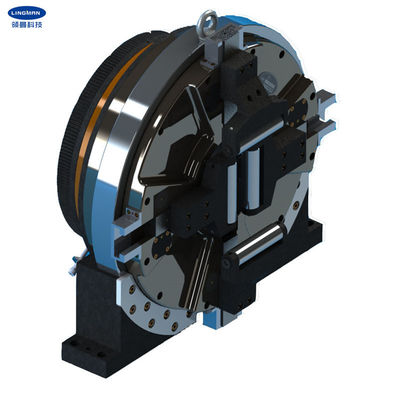

High Production Efficiency 4 Jaw Laser Chuck Full Stroke Main Chuck for Laser Special Pipe Cutting Machine

1. Description



Fast clamping and loosening actions can be achieved through the side rotating air intake, and the air source can be disconnected for work. After the product base is fixed, only the matching motor is added and connected with the gear, and then the compressed air source(0.1-0.9Mpa) is connected to achieve clamping work-piece and driving the work-piece to rotate.



The chuck adopts fully enclosed structure, the stability and the wear resistance are better, the service life is longer, the clamping precision is higher than a traditional laser chuck, the clamping force is bigger than the similar products in the market, and the aerodynamic pressure is lower, smaller clamping force can be obtained, so that thin-walled pipe parts can be processed.



This kinds of chuck is widely applied in laser cutting machine and other pipe processing machine tool systems.



2. Performance Parameters



Model number

G500C-225
Claw stroke 200mm
Maximum clamping force 1.6-2.77KN
Alloable pressure 0.1-0.9MPa
Limit speed 130r/min
Clamping range 0-225mm
Central height 315mm
Rotational  inertia 6.1kg.㎡
Rotating part weight 140kg
Whole unit weight 240kg



Note: above numbers are standard parameters. We can also design products according to clients' special requirements.



​3. Dimensions


4 Jaw Pneumatic Rotary Chuck High Production Efficiency 0


Specifications A B B1 C D E F G H I J K O R S
G500C-170 670 315 694 672 100 60 640 273 225 235 250 400 10 8-M8 18X21


4. Advantages



 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available

   e.1 Solid or hollow

   e.2 Comb-type or mortise-groove type claws



5. Production Line

4 Jaw Pneumatic Rotary Chuck High Production Efficiency 1

6. Our Service



 a.We are the direct factory with good price and fast lead time.
 b.Professional design team work with you.
 c.Professional QC team to guarantee the high quality.
 d.Providing OEM & ODM service.
