| MOQ: | 1 set |
| Price: | USD 8500-8900 set |
| Standard Packaging: | Wood carton |
| Delivery Period: | 10-15 work days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 50 sets per month |
1. Description

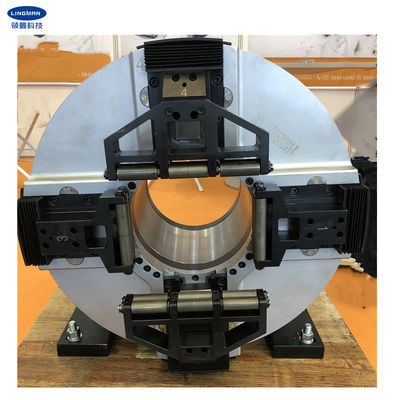

Our chuck is specially designed for laser tube cutting equipment. The product it self can be used as an independent rotating spindle, and it can firmly clamp work-piece and rotate simultaneously. The quick clamping and loosening actions can be realized by side rotation and air intake. Disconnect the air source before operation.
The chuck can work in full stroke without additional adjustment of four claws. It can clamp all applicable pipe fittings and improve production efficiency. Adopting a fully closed structure, the chuck has better stability and wear resistance. With cross roller bearing, it has longer service life, higher rotary accuracy and repeated positioning accuracy than traditional laser chuck, and greater clamping force than similar products in the market.
2. Performance Parameters
|
Model number |
G800D-360 |
| Claw stroke | 260mm |
| Maximum clamping force | 4.1KN |
| Alloable pressure | 0.2-0.9MPa |
| Limit speed | 150r/min |
| Clamping range | 15-360mm |
| Central height | 425mm |
| Rotational inertia | 17.69kg.m2 |
| Rotating part weight | 251kg |
| Whole unit weight | 369kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G800D-360 | 652 | 425 | 800 | 825 | 280 | / | 587 | 405.5 | 360 | 390 | 430 | 650 | 8 | 12-M12 | 18X20 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e.Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Production Line
6. Our Service
| a.We are the direct factory with good price and fast lead time. |
| b.Professional design team work with you. |
| c.Professional QC team to guarantee the high quality. |
| d.Providing OEM & ODM service. |
Video
Video
Video
|
|
| MOQ: | 1 set |
| Price: | USD 8500-8900 set |
| Standard Packaging: | Wood carton |
| Delivery Period: | 10-15 work days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 50 sets per month |
1. Description
Our chuck is specially designed for laser tube cutting equipment. The product it self can be used as an independent rotating spindle, and it can firmly clamp work-piece and rotate simultaneously. The quick clamping and loosening actions can be realized by side rotation and air intake. Disconnect the air source before operation.
The chuck can work in full stroke without additional adjustment of four claws. It can clamp all applicable pipe fittings and improve production efficiency. Adopting a fully closed structure, the chuck has better stability and wear resistance. With cross roller bearing, it has longer service life, higher rotary accuracy and repeated positioning accuracy than traditional laser chuck, and greater clamping force than similar products in the market.
2. Performance Parameters
|
Model number |
G800D-360 |
| Claw stroke | 260mm |
| Maximum clamping force | 4.1KN |
| Alloable pressure | 0.2-0.9MPa |
| Limit speed | 150r/min |
| Clamping range | 15-360mm |
| Central height | 425mm |
| Rotational inertia | 17.69kg.m2 |
| Rotating part weight | 251kg |
| Whole unit weight | 369kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G800D-360 | 652 | 425 | 800 | 825 | 280 | / | 587 | 405.5 | 360 | 390 | 430 | 650 | 8 | 12-M12 | 18X20 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e.Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Production Line
6. Our Service
| a.We are the direct factory with good price and fast lead time. |
| b.Professional design team work with you. |
| c.Professional QC team to guarantee the high quality. |
| d.Providing OEM & ODM service. |
