| MOQ: | 1 set |
| Price: | USD 6900-7500 set |
| Standard Packaging: | Wood carton |
| Delivery Period: | 10-15 work days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 50 sets per month |
1. Description

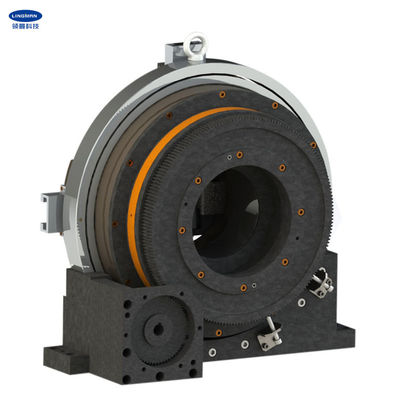

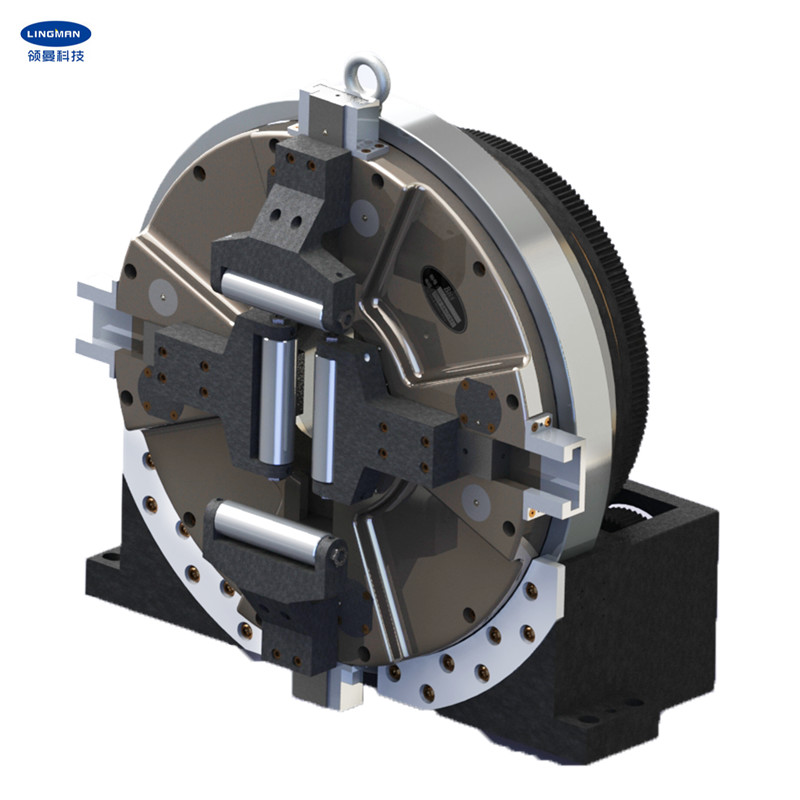

Our chuck is mainly made for laser cutting machine and chuck itself can be applied as an independent rotating spindle. It can tightly clamp the work-piece as well as rotating. The quick clamping and loosening actions can be achieved through the side rotating.
The chuck works along the full stroke, there is no need to adjust the four-jaw position, a full range of applicable pipe parts can be clamped, and the production efficiency is improved. The chuck is in a closed structure and has good stability and wear resistance.
With cross roller bearing, it has longer service life, higher accuracy and repeated positioning accuracy than a traditional laser chuck.Compared with the similar products in the market, it has larger clamping force. In addition, in the case of a low air source, a smaller clamping force can be obtained to satisfy the processing of thin-walled pipes.
The chuck is commonly used in special laser cutters and other pipe processing machine systems.
2. Performance Parameters
|
Model number |
G500C-225 |
| Claw stroke | 200mm |
| Maximum clamping force | 1.6-2.77KN |
| Alloable pressure | 0.1-0.9MPa |
| Limit speed | 130r/min |
| Clamping range | 0-225mm |
| Central height | 315mm |
| Rotational inertia | 6.1kg.㎡ |
| Rotating part weight | 140kg |
| Whole unit weight | 240kg |
Note: above numbers are standard parameters. We can also design products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G500C-170 | 670 | 315 | 694 | 672 | 100 | 60 | 640 | 273 | 225 | 235 | 250 | 400 | 10 | 8-M8 | 18X21 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Production Line
6. Our Service
| a.We are the direct factory with good price and fast lead time. |
| b.Professional design team work with you. |
| c.Professional QC team to guarantee the high quality. |
| d.Providing OEM & ODM service. |
Video
Video
Video
|
|
