Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece

Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece
Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece
Basic Information
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Liangman
Model Number: G400S-165
Minimum Order Quantity: 1 set
Price: USD 2400-2600/set
Packaging Details: wooden carton
Delivery Time: 7-20 work days
Payment Terms: T/T, L/C
Supply Ability: 30 sets per month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Product Name: Laser Chuck Number Of Jaw: Four
Claw Stroke: 140mm Clamping Range: 0-160mm
Rotational Inertia: 1.85g.m2 Rotating Part Weight: 82kg
Whole Unit Weight: 95kg Feature: High Accuracy
Power: Manual Application: Fiber Laser Cutting Machine
High Light:

Manual four jaw independent chuck

,

accurate four jaw independent chuck

,

Hollow 4 jaw chuck

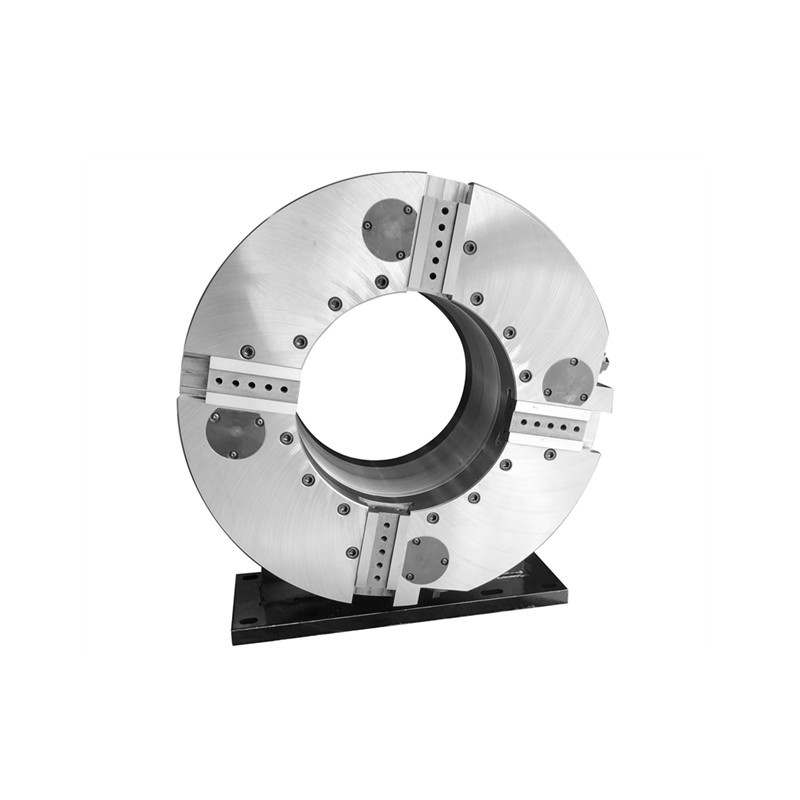

Four Jaw Chuck Hollow Structure Manual Laser Chuck for Circular Square Rectangular Work-piece

 1.Descripition



This chuck is specially designed for laser pipe cutter. The product itself can be used as an independent spindle with manual chuck in the middle. After the base of the the product is fixed, the rotary function can be realized only by connecting the matched motor with the gear.



Clamping the work-piece tightly and driving the work-piece to rotate can be made by controlling two sets of jaws. Because the length of work-piece is long, it usually used as main chuck which is in the head position of laser cutting machine and installed on the equipment with matched back chuck.



Because of the long length of the parts processed by the cutter, the main chuck used as the head position of laser cutting and the back chuck matched with it are usually installed in pairs on the equipment.The chuck has four jaws and is in pairwise centering structure, which can clamp the circular, square, rectangular, elliptical and other centrally axis symmetric parts.




 2.Performance Parameters



  • Model number
G400S-165
  • Claw stroke
140mm
  • Maximunm clamping force
/
  • Allowable pressure

0.4-0.9MPa

  • Limit speed
500r/min
  • Clamping range
0-160mm
  • Central height
260mm
  • Rotational inertia
1.85g.m2
  • Rotating part weight
82kg
  • Whole unit weight
95kg



​ 3.Dimensions

  Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece 0



Specifications A B B1 C D E F G H I J L M N O P Q R S
G400S-165 460 260 480 515 120 80 420 100 165 220 240 30 60 4 5 20 M10 8-M8 14


 4.Advantages

 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e.1 Solid or hollow

  e.2 Comb-type or mortise-groove type claws





 5.Production Line

Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece 1

 6.Our Service

  1.We are the direct factory with good price and fast lead time.
  2.Professional design team work with you.

  3.Professional QC team to guarantee the high quality.

  4.Providing OEM & ODM service.
