High Precision Through Hole Chuck For Laser Pipe Cutting Machine

Product Details

Place of Origin: Changzhou, Jiangsu, China

Brand Name: Liangman

Model Number: G400S-165

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 2400-2600/set

Packaging Details: wooden carton

Delivery Time: 7-20 work days

Payment Terms: T/T, L/C

Supply Ability: 60 sets per month

Get Best Price
Highlight:

OEM Through Hole Chuck

,

Precision Through Hole Chuck

,

Through Hole manual chucks

Product Name:
Laser Chuck
Claw Stroke:
140mm
Clamping Range:
0-160mm
Rotational Inertia:
1.85g.m2
Rotating Part Weight:
82kg
Feature:
High Accuracy
Power:
Manual
Application:
Fiber Laser Cutting Machine
Type:
Through Hole
Product Name:
Laser Chuck
Claw Stroke:
140mm
Clamping Range:
0-160mm
Rotational Inertia:
1.85g.m2
Rotating Part Weight:
82kg
Feature:
High Accuracy
Power:
Manual
Application:
Fiber Laser Cutting Machine
Type:
Through Hole
High Precision Through Hole Chuck For Laser Pipe Cutting Machine
High Precision and Accuracy Through Hole Manual Chuck for Laser Pipe Cutting Machine

 1. Descripition

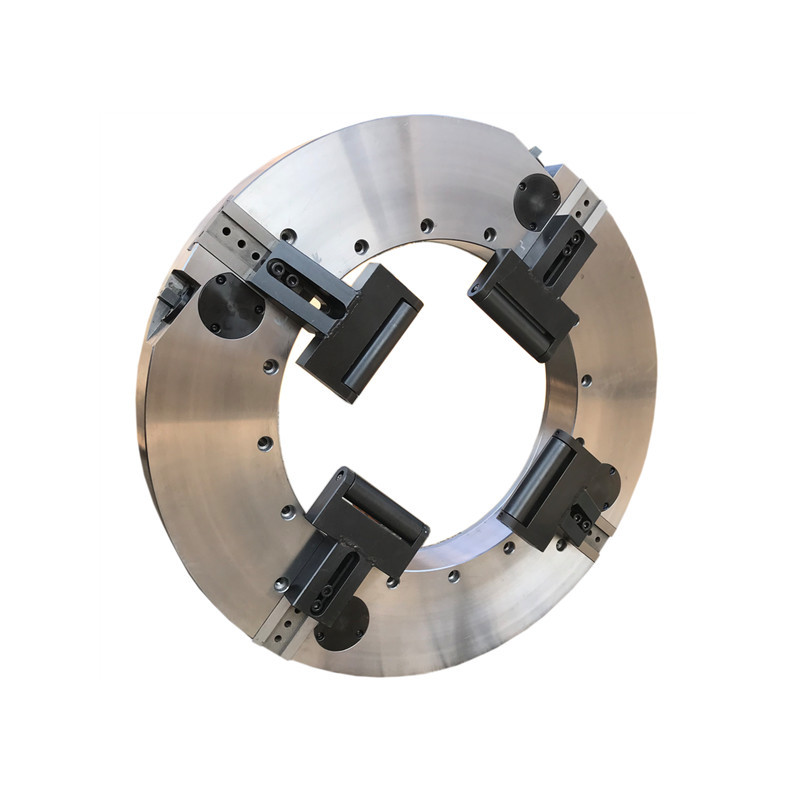

Our chucks are specially produced for fiber laser cutting machine. This kind of chuck is manual dual-power chuck. It has 4 jaws and in through hole structure. It can be applied to clamp the circular, square, rectangular, elliptical and other other work-pieces with central axis symmetry.



Clamping the work-piece tightly and driving the work-piece to rotate can be made by controlling two sets of jaws. Because the length of work-piece is long, it usually used as main chuck which is in the head position of laser cutting machine and installed on the equipment with matched back chuck.



The chuck has four jaws and is in pairwise centering structure. It can be applied to clamp the circular, square, rectangular, elliptical and other work-pieces with central axis symmetry.





 2. Performance Parameters



  • Model number
G400S-165
  • Claw stroke
140mm
  • Maximunm clamping force
/
  • Allowable pressure

0.4-0.9MPa

  • Limit speed
500r/min
  • Clamping range
0-160mm
  • Central height
260mm
  • Rotational inertia
1.85g.m2
  • Rotating part weight
82kg
  • Whole unit weight
95kg



3. Dimensions

  High Precision Through Hole Chuck For Laser Pipe Cutting Machine 0



Specifications A B B1 C D E F G H I J L M N O P Q R S
G400S-165 460 260 480 515 120 80 420 100 165 220 240 30 60 4 5 20 M10 8-M8 14


 4. Advantages

 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e.1 Solid or hollow

  e.2 Comb-type or mortise-groove type claws





 5. Production Line

High Precision Through Hole Chuck For Laser Pipe Cutting Machine 1

 6. Our Service

  1. We are the direct factory with good price and fast lead time.
  2. Professional design team work with you.

  3. Professional QC team to guarantee the high quality.

  4. Providing OEM & ODM service.
