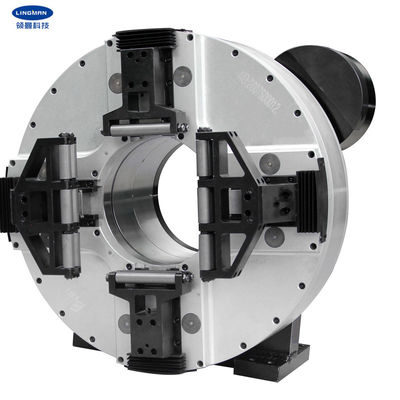

G500D-230 Single Bearing Through Hole Chuck For Laser Tube Cutting Equipment

Product Details

Place of Origin: CHINA-CHANGZHOU

Brand Name: LINGMAN

Model Number: G500D-230

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $3500

Packaging Details: wooden box,packing measurements depend on products.

Delivery Time: 3-10 work days

Payment Terms: T/T

Get Best Price
Highlight:

Single Bearing Through Hole Chuck

,

Laser Equipment Through Hole Chuck

,

200r/min Laser Chuck

Claw Stroke:
210mm
Limit Speed:
200r/min
Clamping Range:
Φ10-Φ230mm
Central Height:
315mm
Rotational Inertia:
4.6Kg.㎡
Rotating Part Weight:
181kg
Whole Unit Weight:
245KG
Maximum Clamping Force:
1.5KN
Allowable Pressure:
0.2-0.9Mpa
Claw Stroke:
210mm
Limit Speed:
200r/min
Clamping Range:
Φ10-Φ230mm
Central Height:
315mm
Rotational Inertia:
4.6Kg.㎡
Rotating Part Weight:
181kg
Whole Unit Weight:
245KG
Maximum Clamping Force:
1.5KN
Allowable Pressure:
0.2-0.9Mpa
G500D-230 Single Bearing Through Hole Chuck For Laser Tube Cutting Equipment

PRODOCUT OVERWIEW:



G500D-230 Single bearing full stroke main chuck of laser dedicated pipe cutter



Product introduction:
This product is specially designed for laser tube cutting equipment. The product itself can be used as an independent rotating spindle, with a chuck that can firmly clamp the workpiece and rotate at the same time. Two built-in independent cylinders, check valve, reverse check valve, with a long-time pressure protection function (more than 8 hours), achieving fast clamping and release action by rotating the side air intake. , Disconnect the air source before working. After the product base is fixed, it only needs to be equipped with a matching motor and gear connection, and at the same time connected to a compressed air source (0.4-0.9Mpa),it can clamp the workpiece and drive the workpiece to rotate. Mainly used for clamp workpiece and rotation.



Model Claw stroke Maximum clamping force Limit speed Clamping range Central height Rotational part inertia Rotating part weight Whole unit weight Allowable pressure
G500D-230 210 1.5 200 10-230 315 4.6 128 245 0.2-0.9
G800D-360 260 4.1 150 15-360 425 17.69 251 369 0.2-0.9
G400DB-175 162 0.8 150 8-170 260 3.2 125 190 0.25-0.9
