Automatic Laser Rotary Chuck Double Acting for CNC Fiber Tube Cutter

1 set
MOQ
USD 3400-3800/set
Price
Automatic Laser Rotary Chuck Double Acting for CNC Fiber Tube Cutter
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Pneumatic Laser Chuck
Claw Stroke: 140mm
Maximum Clamping Force: 1.2KN
Allowable Pressure: 0.25-0.9MPa
Limit Speed: 200r/min
Clamping Range: 20-160mm
Central Height: 260mm
Color: Black
Feature: Low Energy Concumption
Application: Laser Tube Cutting Machine
High Light:

Double Acting Automatic Rotary Chuck

,

CNC Fiber Tube Cutter Rotary Chuck

,

ODM Laser Rotary Chuck

Basic Infomation
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: G400J-165
Payment & Shipping Terms
Packaging Details: Wood carton
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C
Supply Ability: 500 sets per month
Product Description
Double-acting Automatic And Rotary CNC Fiber Laser Tube Cutting Machine Chuck
 1. Descripition

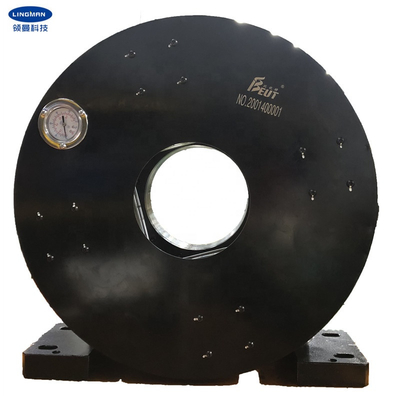

This product is a pneumatic double-action chuck with integrated tube sheet. This chuck adopts the direct output of the cylinder, and the output force and the air pressure are linearly proportional, so it can be easily controlled by software. This chuck is mainly used to clamp round tubes with different sizes. Its clamping range is Φ20-160mm and central height is 260mm. It can meet can meet normal pipe cutting needs.This laser chuck is widely used in tube-sheet itegrated machines, like model 3105.


 2. Performance Parameters

  • Model number
G400J-165
  • Claw stroke
140mm
  • Maximunm clamping force
1.2KN
  • Allowable pressure
0.25-0.9MPa
  • Limit speed
200r/min
  • Clamping range
20-160mm
  • Central height
260mm
  • Rotational inertia
1.26Kg.m2
  • Rotating part weight
78kg
  • Whole unit weight
111kg


​ 3.Dimensions
 Automatic Laser Rotary Chuck Double Acting for CNC Fiber Tube Cutter 0

Specifications A B B1 C D E F G H I R S
G400J-165 500 260 510 515 160 100 440 171 165 240 12-M8 18


 4. Advantages

 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e. 1 Solid or hollow

  e. 2 Comb-type or mortise-groove type claws



5. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.



 6. Production Line
Automatic Laser Rotary Chuck Double Acting for CNC Fiber Tube Cutter 1
