Full Through Hole Hollow Feeding Chuck Rod Type With Lower Energy Consumption

Category:
Laser Rotary Chuck
Price:
USD 2400-2800 set
Payment Method:
T/T, L/C
Specifications
Claw Stroke:
57mm
Maximum Clamping Force:
1.6KN
Allowable Pressure:
0.3-1.0MPa
Limit Speed:
400r/min
Clamping Range:
10-165mm
Central Height:
115mm
Rotational Inertia:
0.08kg.㎡
Rotating Part Weight:
24kg
Feature:
Large Clamping Force
Highlight:

Full Through Hole Hollow Feeding Chuck

,

Lower Energy Consumption Hollow Chuck

,

Rod Type Hollow Feeding Chuck

Introduction

Lower Energy Consumption Rod-Type Full Through Hole Hollow Feeding Chuck

 1. Description

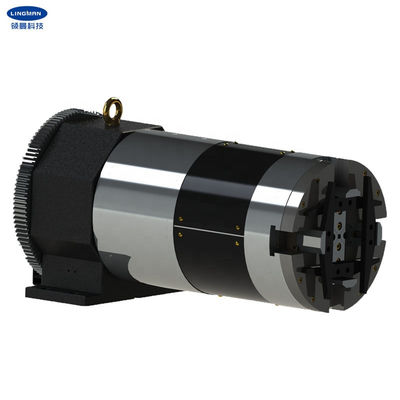

The product is specially designed for laser tube cutting equipment. The product itself can be used as an independent rotating spindle with a chuck that can firmly clamp the work- piece while rotating. Rotary air intake is achieved through the gyrator equipped at the end to achieve fast clamping and loosening actions. The air source supplies air continuously during work.



The clamping force of the product is large, the clamping is stable; the adjustment is convenient, the efficiency is high; the rigidity is higher than a long clamping claw, the precision can be maintained for a long time, and there is no phenomenon that the bending deformation of the clamping claw affects the rotary precision.



The center of the product is a through structure. In order to make the environment clean and hygienic, the product of this series can be equipped with a dust extraction device on the back.



 2. Performance Parameters



  • Model number:
W160T-23
  • Claw stroke:
57mm
  • Maximunm clamping force:
1.6KN
  • Allowable pressure:
0.3-1.0MPa
  • Limit speed:
400r/min
  • Clamping range:
10-165mm
  • Central height:
120mm
  • Rotational inertia:
0.08kg.m²
  • Rotating part weight:
24kg
  • Whole unit weight:
43kg



3. Dimensions


Full Through Hole Hollow Feeding Chuck Rod Type With Lower Energy Consumption


Specifications A B B1 C D E F H M N P Q S T G
W160T-23 200 120 164 258 106 70 185 23 30 3 12.5 M6 18 397 628


 4. Advantages

   a. Full stroke design

   b. Wide range of applications, diversification of processing profiles

   c. High repetitive positioning accuracy
   d. Low maintenance cost, long service life
   e. Multiple configurations are available
     e.1 Solid or hollow

     e.2 Comb-type or mortise-groove type claws





5. Our Service

1. We are the direct factory with good price and fast lead time.
2. Professional design team work with you.

3. Professional QC team to guarantee the high quality.

4. Providing OEM & ODM service.



6. Production Line

Full Through Hole Hollow Feeding Chuck Rod Type With Lower Energy Consumption



Send RFQ
Stock:
MOQ:
1 set
