Product Details
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: W300J
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 4100-4300/set
Packaging Details: Wood carton
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C
Supply Ability: 50 sets per month
Product Name: |
Rear Chuck |
Material: |
Stainless Steel |
Claw Stroke: |
86mm |
Maximum Clamping Force: |
9.8KN |
Allowable Pressure: |
0.3-1MPa |
Limit Speed: |
500r/min |
Clamping Range: |
10-2314mm |
Central Height: |
250mm |
Rotational Inertia: |
145kg |
Whole Unit Weight: |
175kg |
Feature: |
High Precision |
Product Name: |
Rear Chuck |
Material: |
Stainless Steel |
Claw Stroke: |
86mm |
Maximum Clamping Force: |
9.8KN |
Allowable Pressure: |
0.3-1MPa |
Limit Speed: |
500r/min |
Clamping Range: |
10-2314mm |
Central Height: |
250mm |
Rotational Inertia: |
145kg |
Whole Unit Weight: |
175kg |
Feature: |
High Precision |
1. Description

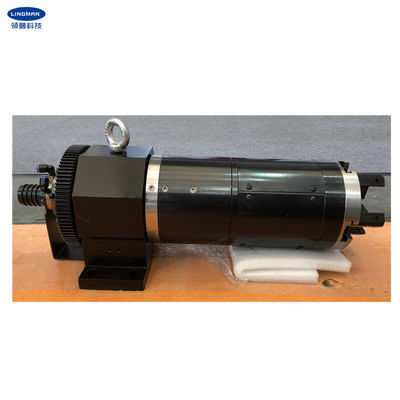

This solid feeding chuck is specially designed for laser tube cutting equipment. The quick clamping and loosening actions can be made by air intake through the gyrator which is at the end of the chuck. Rotary air intake is achieved through the gyrator equipped at the end to achieve fast clamping and loosening actions. The air source supplies air continuously during work.
This chuck has large clamping force, high efficiency and the ability of clamping is very stable. It is convenient to adjust all the parts of it. The stiffness of the chuck is higher than long clamping claw and its accuracy can be maintained for a long time. There is no phenomenon that the bending deformation of the clamping claw affects the rotary precision.
The design length of the clamping claw is short, and the phenomenon that slippery is caused and the clamping is unstable because of a long clamping claw horn does not appear at the condition of the maximum clamping force; the chuck has a simple structure, light weight, small moment of inertia and low energy consumption.
2. Performance Parameters
|
W300J |
|
86mm |
|
9.8KN |
|
0.3-1.0MPa |
|
500r/min |
|
10-314mm |
|
250mm |
|
2.2kg.m2 |
|
145kg |
|
175kg |
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | I | J | L | M | N | O | P | Q | R | S | T |
| W300J | 440 | 250 | 300 | 475 | 250 | 200 | 380 | 962 | 190 | 220 | / | / | / | / | / | / | 12-M10 | 18 | 464 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available e.2 Comb-type or mortise-groove type claws |
5. Production Line
6. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
6. FAQ
Q: What parameters should we offer us for proper quotation?
A: Application, dimension, quantity, packing requirements.
Q:What's your advantages?
A:Honest business with competitive price and professional service on export process.
Q: Can we visit your company to inspect products before delivery?
A: You are welcome to visit our company to inspect us and our products.
Q:What's your lead time?
A: Within 15-35 days after confirming the order.
Q: What are your payment terms?
A: T/T, L/C, West Union, Paypal, etc.
