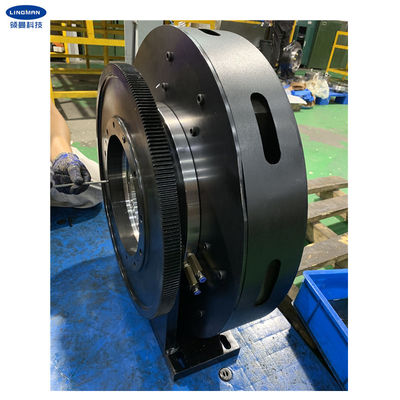

Laser Rotary Chuck Simple Structure For Laser Tube Cutting Machine

Product Details

Place of Origin: Changzhou, Jiangsu, China

Brand Name: Lingman

Model Number: G600J-225

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 3400-3800/set

Packaging Details: Wood carton

Delivery Time: 15-20 work days

Payment Terms: T/T, L/C

Supply Ability: 500 sets per month

Get Best Price
Highlight:

350mm Laser Rotary Chuck

,

Tube Cutter Laser Rotary Chuck

,

Simple Structure Laser Rotary Chuck

Product Name:
Laser Chuck
Claw Stroke:
220mm
Maximum Clamping Force:
1.7KN
Allowable Pressure:
0.4-0.9MPa
Limit Speed:
500r/min
Clamping Range:
0-220mm
Central Height:
350mm
Rotational Inertia:
6.5kg.㎡
Rotating Part Weight:
129kg
Whole Unit Weight:
177kg
Product Name:
Laser Chuck
Claw Stroke:
220mm
Maximum Clamping Force:
1.7KN
Allowable Pressure:
0.4-0.9MPa
Limit Speed:
500r/min
Clamping Range:
0-220mm
Central Height:
350mm
Rotational Inertia:
6.5kg.㎡
Rotating Part Weight:
129kg
Whole Unit Weight:
177kg
Laser Rotary Chuck Simple Structure For Laser Tube Cutting Machine
Laser Rotary Chuck Simple Structure For Laser Tube Cutting Machine
 1. Descripition

 Our laser chuck is specially designed for laser pipe cutting machine. This chuck is mainly used to clamp round tubes with different sizes. Its clamping range is Φ0-220mm and central height is 350mm. It can meet can meet normal pipe cutting needs.

 This laser chuck has a simple structure, few components, light weight, low failure rate, stable performance, small moment of inertia and low energy consumption. The axial dimension of the chuck is small, and the cost for realizing the zero tailings si lower. At the same time, it also saves the cost of production.

 This laser chuck is widely used in tube-sheet itegrated machines, like model 3105.



 2. Performance Parameters
  • Model number
G600J-225
  • Claw stroke
220mm
  • Maximunm clamping force
1.7KN
  • Allowable pressure
0.4-0.9MPa
  • Limit speed
500r/min
  • Clamping range
0-220mm
  • Central height
350mm
  • Rotational inertia
6.5Kg.m2
  • Rotating part weight
129kg
  • Whole unit weight
177kg


3. Dimensions
 Laser Rotary Chuck Simple Structure For Laser Tube Cutting Machine 0

Specifications A B B1 C D E F G H I R S
G600J-225 520 350 680 690 179 120 460 185 225 280 12-M8 18


 4. Advantages

 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e. 1 Solid or hollow

  e. 2 Comb-type or mortise-groove type claws
