Place of Origin: | Changzhou, Jiangsu, China |
---|---|
Brand Name: | Lingman |
Model Number: | Laser rotary chuck W160T-23 |
Minimum Order Quantity: | 1 set |
Price: | USD 2400-2800 set |
Packaging Details: | Wood carton |
Delivery Time: | 10-15 work days |
Payment Terms: | T/T, L/C |
Supply Ability: | 100 sets per month |
Product: | Laser Rotary Chuck | Claw Stroke: | 57mm |
---|---|---|---|
Maximum Clamping Force: | 1.6KN | Allowable Pressure: | 0.3-1.0MPa |
Limit Speed: | 400r/min | Clamping Range: | 10-165mm |
Central Height: | 120mm | Rotational Inertia: | 0.08kg.㎡ |
Feature: | Hollow Structure | Material: | Steel, Stainless Steel |
High Light: | Hollow Four Jaw Laser Rotary Chuck,Double Acting Feeding Laser Rotary Chuck |
1. Description
30 workers, 5000 square meters workshop, 15 years of r&d experience, 15 years of Chinese chuck supplier, ISO, CE certification, only 2 hours away from Shanghai port, this is our company for global customers to maintain good quality and competitive prices.

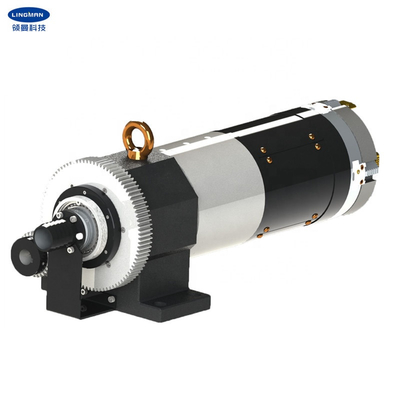

Our laser rotary chuck is specially designed for laser pipe cutting equipment. It can be used with the chuck as an independent rotating spindle, which can firmly clamp the workpiece and rotate at the same time.
The clamping force of this laser rotary chuck is large. The rigidity is higher than the long claw, the accuracy can be maintained for a long time, and the phenomenon of the claw bending deformation will not affect the rotary accuracy; Specially designed for short claw, so in the maximum clamping force will not appear long claw bell mouth and slip, clamping instability phenomenon.
Lever type hollow four-jaw double action feeding chuck is suitable for laser cutting equipment, rotary cutting round pipe, square pipe, elliptical pipe and so on.
2. Performance Parameters
|
W160T-23 |
|
57mm |
|
1.6KN |
|
0.3-1.0MPa |
|
400r/min |
|
10-165mm |
|
120mm |
|
0.08kg.m² |
|
24kg |
|
43kg |
3. Dimensions
Specifications | A | B | B1 | C | D | E | F | H | M | N | P | Q | S | T | G |
W160T-23 | 200 | 120 | 164 | 258 | 106 | 70 | 185 | 23 | 30 | 3 | 12.5 | M6 | 18 | 397 | 628 |
4. Advantages
a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life
e. Multiple configurations are available
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws
5. Our Service
1. We are the direct factory with good price and fast lead time.
2. Professional design team work with you.
3. Professional QC team to guarantee the high quality.
4. Providing OEM & ODM service.
6. Production Line
