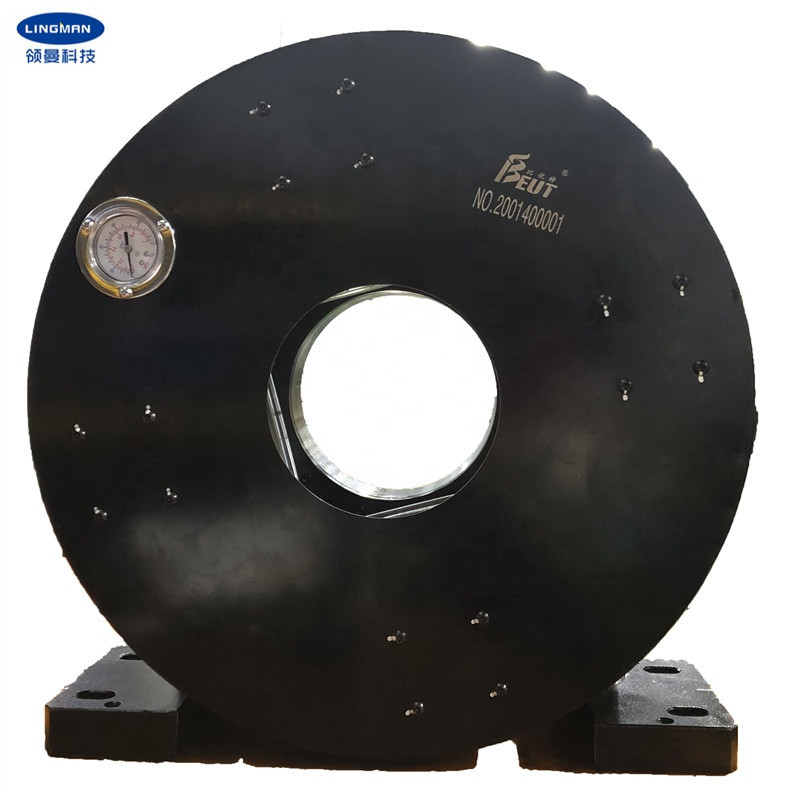

4 Jaws 220mm Diameter Pneumatic Laser Rotary Double Acting Chuck

1 set
MOQ
USD 3400-3800/set
Price
4 Jaws 220mm Diameter Pneumatic Laser Rotary Double Acting Chuck
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Pneumatic Laser Rotary Chuck
Claw Stroke: 220mm
Maximum Clamping Force: 1.7KN
Allowable Pressure: 0.2-0.9MPa
Limit Speed: 210r/min
Clamping Range: 0-220mm
Central Height: 355mm
Color: Black
Feature: Zero Tailing
Application: Tube Cutting Machine
High Light:

Pneumatic Laser Rotary Double Acting Chuck

,

220mm Dia Rotary Double Acting Chuck

Basic Infomation
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: G600J-225
Payment & Shipping Terms
Packaging Details: Wood carton
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C
Supply Ability: 500 sets per month
Product Description

4 Jaws 220mm Diameter Pneumatic Laser Rotary Double Acting Chuck

 1. Descripition



The product is designed for laser tube cutting equipment and supporting, the product itself can be used as an independent rotating spindle, through the side rotation of air intake to achieve fast clamping and loosening action, disconnected air source, can work. After the product base is fixed, it only needs to install the supporting motor and gear connection, and connect with the compressed air source (0.25-0.9mpa) to achieve clamping workpiece and driving the workpiece rotation. The chuck has a clamping stroke of 220 mm and a center height of 350 mm.
Chuck simple structure, small number of components, light weight, low failure rate, stable performance, small moment of inertia, low energy consumption. The axial size of chuck is small, and the cost of zero tail is lower.


 2. Performance Parameters

  • Model number
G600J-225
  • Claw stroke
220mm
  • Maximunm clamping force
1.7KN
  • Allowable pressure
0.25-0.9MPa
  • Limit speed
200r/min
  • Clamping range
0-220mm
  • Central height
350mm
  • Rotational inertia
6.5Kg.m2
  • Rotating part weight
129kg
  • Whole unit weight
177kg


​ 3.Dimensions
 4 Jaws 220mm Diameter Pneumatic Laser Rotary Double Acting Chuck 0

Specifications A B B1 C D E F G H I R S
G600J-225 520 350 680 690 179 120 460 185 225 280 12-M8 18


 4. Advantages

 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e. 1 Solid or hollow

  e. 2 Comb-type or mortise-groove type claws



5. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.


6.Packing & Delivery



4 Jaws 220mm Diameter Pneumatic Laser Rotary Double Acting Chuck 14 Jaws 220mm Diameter Pneumatic Laser Rotary Double Acting Chuck 2


 7. Production Line
4 Jaws 220mm Diameter Pneumatic Laser Rotary Double Acting Chuck 3
