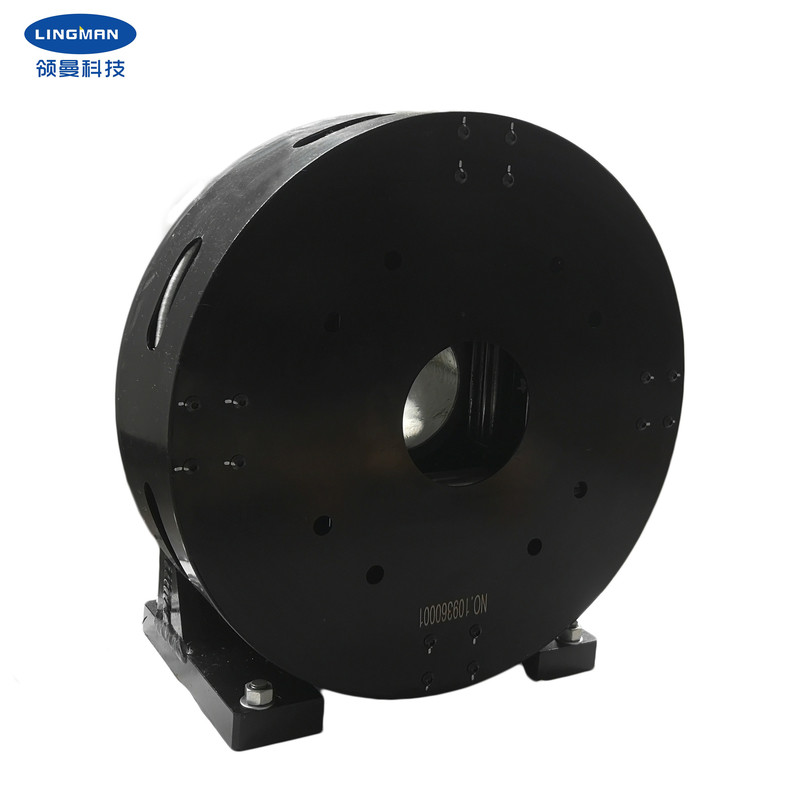

110mm Diameter Four Jaw Pneumatic Laser Rotary Chuck for Tube Cutting Machine

Category:
Laser Rotary Chuck
Price:
USD 3400-3800/set
Payment Method:
T/T, L/C
Specifications
Product Name:
Laser Rotary Chuck
Claw Stroke:
110mm
Maximum Clamping Force:
0.81KN
Allowable Pressure:
0.2-0.9MPa
Limit Speed:
200r/min
Clamping Range:
3-112mm
Central Height:
235mm
Material:
Steel, Stainless Steel
Feature:
Lower Energy Consumption
Application:
Tube Cutting Machine
Highlight:

110mm Diameter Laser Rotary Chuck

,

Four Jaw Pneumatic Laser Rotary Chuck

Introduction

110mm Diameter Four Jaw Pneumatic Laser Rotary Chuck for Tube Cutting Machine

 1. Descripition

Our laser chucks are pneumatic and are mainly used in laser pipe cutters, plasma cutters and welders. Simple pneumatic double action chuck is suitable for laser tube cutting equipment, rotary cutting round tube, square tube, elliptical tube, etc. Model (G360J-110) can meet the needs of small size thin wall tube. The opening and closing of the jaw is controlled by the air source, and the rotation of the chuck is controlled by the gear drive and the motor.

Compared with traditional lathe chucks, laser chucks improve cutting accuracy, rotation accuracy and repeatability. The application of laser chuck makes laser cutting more efficient and faster, and also improves production efficiency. Chuck simple structure, small number of components, light weight, low failure rate, stable performance, small moment of inertia, low energy consumption. The axial size of chuck is small, and the cost of zero tail is lower.

In addition to our standard chuck, we can also customize the chuck according to customer needs.


 2. Performance Parameters

  • Product name
Laser rotary chuck
  • Model number
G360J-110
  • Claw stroke
110mm
  • Maximunm clamping force
0.8KN
  • Allowable pressure
0.25-0.9MPa
  • Limit speed
200r/min
  • Clamping range
3-110mm
  • Central height
230mm
  • Rotational inertia
1.44Kg.m²
  • Rotating part weight
66kg
  • Whole unit weight
116kg


​ 3.Dimensions
 110mm Diameter Four Jaw Pneumatic Laser Rotary Chuck for Tube Cutting Machine

Specifications A B B1 C D E F G H I R S
G360J-110 320 230 435 447.5 220 196 270 197.5 110 122 12-M8 14


 4. Advantages

 a. Full stroke design
 b. Wide range of applications, diversification of processing profiles
 c. High repetitive positioning accuracy
 d. Low maintenance cost, long service life

 e. Multiple configurations are available
  e. 1 Solid or hollow

  e. 2 Comb-type or mortise-groove type claws



5. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
c. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.



 6. Production Line
110mm Diameter Four Jaw Pneumatic Laser Rotary Chuck for Tube Cutting Machine
