| MOQ: | 1 set |
| Price: | USD 3200-4600/set |
| Standard Packaging: | Wood carton |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 500 sets per month |
1. Descripition

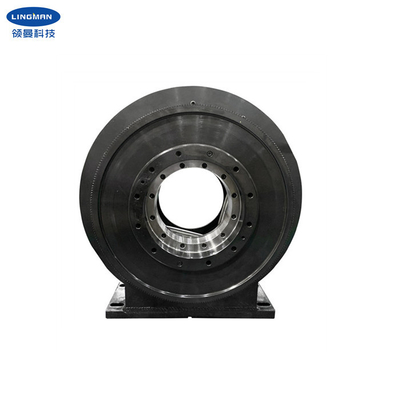

Our laser chuck is pneumatic type and is mainly used in laser pipe cutting machine, plasma cutting machine and welding machine. It can support different shapes of pipes, such as round pipe, square pipe, rectangular pipe, L-shape pipe and H-shape pipe. It improves the cutting accuracy, rotation accuracy and repeated positioning accuracy, compared with traditional chuck. The application of laser chuck makes laser cutting more efficient and quickly.
This laser chuck has a simple structure, few components, light weight, low failure rate, stable performance, small moment of inertia and low energy consumption. The axial dimension of the chuck is small, and the cost for realizing the zero tailings si lower. At the same time, it also saves the cost of production. This laser chuck is widely used in tube-sheet itegrated machines, like model 3105.
Except standard chucks, we also provide customized chucks according customers' requirements.
2. Performance Parameters
|
G600J-225 |
|
220mm |
|
1.7KN |
|
0.25-0.9MPa |
|
200r/min |
|
0-220mm |
|
350mm |
|
6.5Kg.m2 |
|
129kg |
|
177kg |
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | R | S |
| G600J-225 | 520 | 350 | 680 | 390 | 179 | 120 | 460 | 185 | 225 | 280 | 12-M8 | 18 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
|
e. Multiple configurations are available |
5. Production Line
6. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
