Product Name: Pneumatic Laser Rotary Chuck
Claw Stroke: 110mm
Maximum Clamping Force: 0.8KN
Allowable Pressure: 0.25-0.9MPa
Limit Speed: 200r/min
Clamping Range: 3-110mm
Central Height: 230mm
Color: Black
Feature: Stable Working Performance
Application: Pipe Cutting Machine
Highlight:

110mm Pneumatic Laser Rotary Chuck

,

Pipe Cutter Machine Laser Rotary Chuck

,

200r/min Pneumatic Rotary Chuck

Basic Infomation
Place of Origin: Changzhou, Jiangsu, China
Brand Name: Lingman
Model Number: Laser Rotary Chuck G360J-110
Payment & Shipping Terms
Packaging Details: Wood carton
Delivery Time: 15-20 work days
Payment Terms: T/T, L/C
Supply Ability: 500 sets per month
Product Description

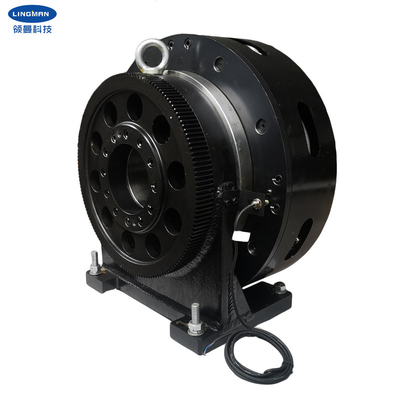

110mm Diameter Pneumatic Laser Rotary Chuck For Pipe Cutting Machine
 1. Descripition


This product is a pneumatic double-action chuck with integrated tube sheet. This laser rotary chuck adopts a full stroke to clamp the workpiece, which can automatically and accurately center and quickly automate processing, greatly improving work efficiency and reducing employee consumption. This chuck uses the direct output of the cylinder, and the output force and the air pressure are linearly proportional, so it can be easily controlled by software. This chuck is mainly used to clamp round tubes with different sizes. Its clamping range is Φ20-160mm and central height is 260mm. It can meet can meet normal pipe cutting needs.This laser chuck is widely used in tube-sheet itegrated machines, like model 3105.



The simple pneumatic double-action chuck of the tube-sheet integrated machine is suitable for laser tube cutting equipment, rotary cutting of round tubes, square tubes, elliptical tubes, etc.
 2. Performance Parameters

  • Model number
G360J-110
  • Claw stroke
110mm
  • Maximunm clamping force
0.8KN
  • Allowable pressure
0.25-0.9MPa
  • Limit speed
200r/min
  • Clamping range
3-110mm
  • Central height
230mm
  • Rotational inertia
1.44Kg.m2
  • Rotating part weight
66kg
  • Whole unit weight
116kg


​ 3.Dimensions
 110mm Diameter Pneumatic Laser Rotary Chuck For Pipe Cutting Machine 0

Specifications A B B1 C D E F G H I R S
G360J-110 320 230 435 447.5 220 196 270 197.5 110 122 12-M8 14
