High precision 4 position LD4-6132 vertical NC turret for CNC turret punching machine

Name: High precision 4 position LD4-6132 vertical NC turret for CNC turret punching machine
Brand: Lingman
SKU: LM-1000W
Rating: 4.9 (200 reviews)

MOQ:	1 set
Standard Packaging:	Wood carton
Delivery Period:	10-15 work days
LD4
Payment Method:	T/T, L/C
Supply Capacity:	500 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

Changzhou, Jiangsu, China

Brand Name

Lingman

Model Number

LM-1000W

Product Name:

High Stiffness Horizontal NC Tool Turret For Lathe

Type:

LD4-CK6125 Of High Stiffness Turret

Repeatability Accuracy(%22):

±2 Of High Stiffness Turret

Center Height Of High Stiffness Turret:

57 Of High Stiffness Turret

Max.tangential Torque(N M):

90 Of High Stiffness Turret

Minimum Order Quantity:

1 set

Packaging Details:

Wood carton

Delivery Time:

10-15 work days

Description:

LD4

Payment Terms:

T/T, L/C

Supply Ability:

500 sets per month

High Light:

LD4-6132 vertical NC turret

4 position vertical NC turret

CNC punching machine NC turret

Product Description

ld4 series vertical NC turre

High precision 4 position LD4-6132 vertical NC turret for CNC turret punching machine 0

Turret Features:

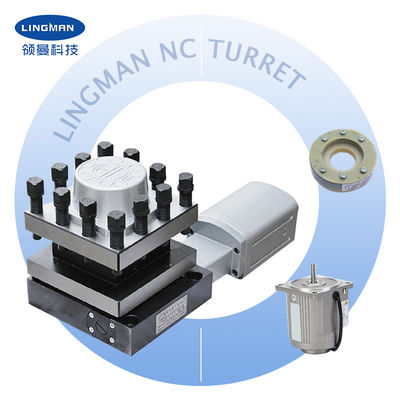

Model ld4 series vertical NC turret adopts the working principle of worm wheel and worm for driving ,face gear coupling as fine indexing mechanism,big screw for clamping,sending signal with hall unit .It features fast change tools,high repeatability accuracy,high stiffness.It is a popular product for economic NC lathe.

2. Performance Parameters

重复定位精度Repeatability accuracy(")	电机功率Motor power(W)	电机转速Motor paraphrased	换刀时间Time of changing tool and lock(s)	最大切向力矩Max.tangential torque(N·m)
重复定位精度Repeatability accuracy(")	电机功率Motor power(W)	电机转速Motor paraphrased	90º	最大切向力矩Max.tangential torque(N·m)
±2	40	1400	1	100
±2	50	1400	1.2	150
±2	90	1400	1.7	300
±2	90	1400	1.9	400
±2	120	1400	2	500
±2	120	1400	2	500
±2	120	1400	2	600
±2	120	1400	2	600
±2	180	1400	2.5	800

High precision 4 position LD4-6132 vertical NC turret for CNC turret punching machine 1

H2	H3	H4	L1	L2	L3	L4	A	A1	B	B1	C	D	D1	E	E1	F	φ	φ1	φ2	h	M
40	15	11	57.5	86	70	50	70	35	87	36	74	57	50	6.5	10	6.5	φ7	φ11	φ68	6.5	M6
48	19	16	58	100	80	56	80	40	110	55	94	64	52	8	13	8	φ9	φ14	φ78	9	M8
51	22	16	86	118	110	80	120	55	126	56	110	90	80	15	20	8	φ9	φ14	φ88	9	M10
57	35	16.5	110	118	136	96	136	68	148	68	126	108	108	14	14	11	φ11	φ17	φ88	11	M12
70	40	21	76	127	152	104	161	76	171	76	146	126	126	23	23	12	φ13	φ19	φ88	13	M16
77	33	21	76	127	152	104	161	76	171	76	146	126	126	23	23	12	φ13	φ19	φ88	13	M16
81	40	23	76	127	162	112	192	81	192	105	168	152	152	20	20	12	φ13	φ19	φ88	13	M16
121	40	47	76	127	162	112	192	81	192	105	168	152	152	20	20	12	φ13	φ19	φ88	13	M16
112	51	40	110	132	200	124	200	100	200	100	177	150	130	25	35	11.5	φ13	φ19	φ98	13	M16
120	51	40	110	132	200	124	200	100	200	100	177	150	130	25	35	11.5	φ13	φ19	φ98	13	M16
