| MOQ: | 1set |
| Price: | 2200~2450USD |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7 days |
| Payment Method: | TT, L/C, Western Union |
| Supply Capacity: | 500SETS/Month |
1. Descripition

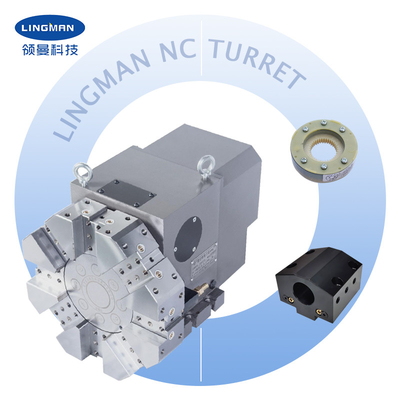

Model HAK31 series horizontal NC turret adopts the working principle of worm for driving, 3 face gear coupling as fine indexing mechanism, big screw for clamping, sending signal with Hall unit. It features indexing without too-holder disk lifting, steady rotating, low noise, high stiffness, multi stations, build-in cooling. lt is the ideal choice for processing complex parts.
2. Performance Parameters
| technical | ||||||
| turret model | HAK31063 | HAK31080 | HAK31100 | HAK31125 | HAK31160 | |
| ltem | unit | Numerical value | ||||
| Center Height | mm | 63 | 80 | 100 | 125 | 160 |
| Station Number | N | 6/8 | 6/8 | 6/8 | 6/8 | 6/8 |
| Load-bearing(including disc) | Kg | 27 | 40 | 80 | 120 | 200 |
| Max.tangential torque | N.m | 600 | 1000 | 1500 | 2500 | 4000 |
| Maximum off load moment | N.m | 7 | 15 | 40 | 60 | 120 |
| Time of changing adjoin tool | S | 2.6/2.8 | 2.8/3.0 | 3.6/3.8 | 4.0/4.2 | 4.3/4.5 |
| Repeatbility accuracy | “ | ±2 | ±2 | ±2 | ±2 | ±2 |
| Motor power | W | 120 | 120 | 4N.m | 4N.m | 6N.m |
| Motor rated voltage | V | 380 | 380 | 380 | 380 | 380 |
| N.W.(without tool disc) | Kg | 45 | 60 | 75 | 130 | 300 |
| Turret specifications and accessories | ||||||
| 6T Disc size | mm | 230 | 260 | 300 | 340 | 460 |
| 8T Disc size | mm | 230 | 260 | 300 | 340 | 460 |
| O.D.tool | mm | 20 | 25 | 25 | 25/32 | 32/40 |
| Facing tool | mm | 20 | 25 | 25 | 25/32 | 32/40 |
| Boring tool | mm | 25 | 32 | 40 | 40 | 50 |
| Note: Non-standard cutter head such as VDI and BMT can be customized, and the cooling mouth of the front tool holder is opposite to the position shown | ||||||
3. Dimensions
5. Production Line
1.We are the direct factory with good price and fast lead time.
2.Professional design team work with you.
3.Professional QC team to guarantee the high quality.
4.Providing OEM & ODM service.
|
|
| MOQ: | 1set |
| Price: | 2200~2450USD |
| Standard Packaging: | Wooden box |
| Delivery Period: | 7 days |
| Payment Method: | TT, L/C, Western Union |
| Supply Capacity: | 500SETS/Month |
1. Descripition
Model HAK31 series horizontal NC turret adopts the working principle of worm for driving, 3 face gear coupling as fine indexing mechanism, big screw for clamping, sending signal with Hall unit. It features indexing without too-holder disk lifting, steady rotating, low noise, high stiffness, multi stations, build-in cooling. lt is the ideal choice for processing complex parts.
2. Performance Parameters
| technical | ||||||
| turret model | HAK31063 | HAK31080 | HAK31100 | HAK31125 | HAK31160 | |
| ltem | unit | Numerical value | ||||
| Center Height | mm | 63 | 80 | 100 | 125 | 160 |
| Station Number | N | 6/8 | 6/8 | 6/8 | 6/8 | 6/8 |
| Load-bearing(including disc) | Kg | 27 | 40 | 80 | 120 | 200 |
| Max.tangential torque | N.m | 600 | 1000 | 1500 | 2500 | 4000 |
| Maximum off load moment | N.m | 7 | 15 | 40 | 60 | 120 |
| Time of changing adjoin tool | S | 2.6/2.8 | 2.8/3.0 | 3.6/3.8 | 4.0/4.2 | 4.3/4.5 |
| Repeatbility accuracy | “ | ±2 | ±2 | ±2 | ±2 | ±2 |
| Motor power | W | 120 | 120 | 4N.m | 4N.m | 6N.m |
| Motor rated voltage | V | 380 | 380 | 380 | 380 | 380 |
| N.W.(without tool disc) | Kg | 45 | 60 | 75 | 130 | 300 |
| Turret specifications and accessories | ||||||
| 6T Disc size | mm | 230 | 260 | 300 | 340 | 460 |
| 8T Disc size | mm | 230 | 260 | 300 | 340 | 460 |
| O.D.tool | mm | 20 | 25 | 25 | 25/32 | 32/40 |
| Facing tool | mm | 20 | 25 | 25 | 25/32 | 32/40 |
| Boring tool | mm | 25 | 32 | 40 | 40 | 50 |
| Note: Non-standard cutter head such as VDI and BMT can be customized, and the cooling mouth of the front tool holder is opposite to the position shown | ||||||
3. Dimensions
5. Production Line
1.We are the direct factory with good price and fast lead time.
2.Professional design team work with you.
3.Professional QC team to guarantee the high quality.
4.Providing OEM & ODM service.
